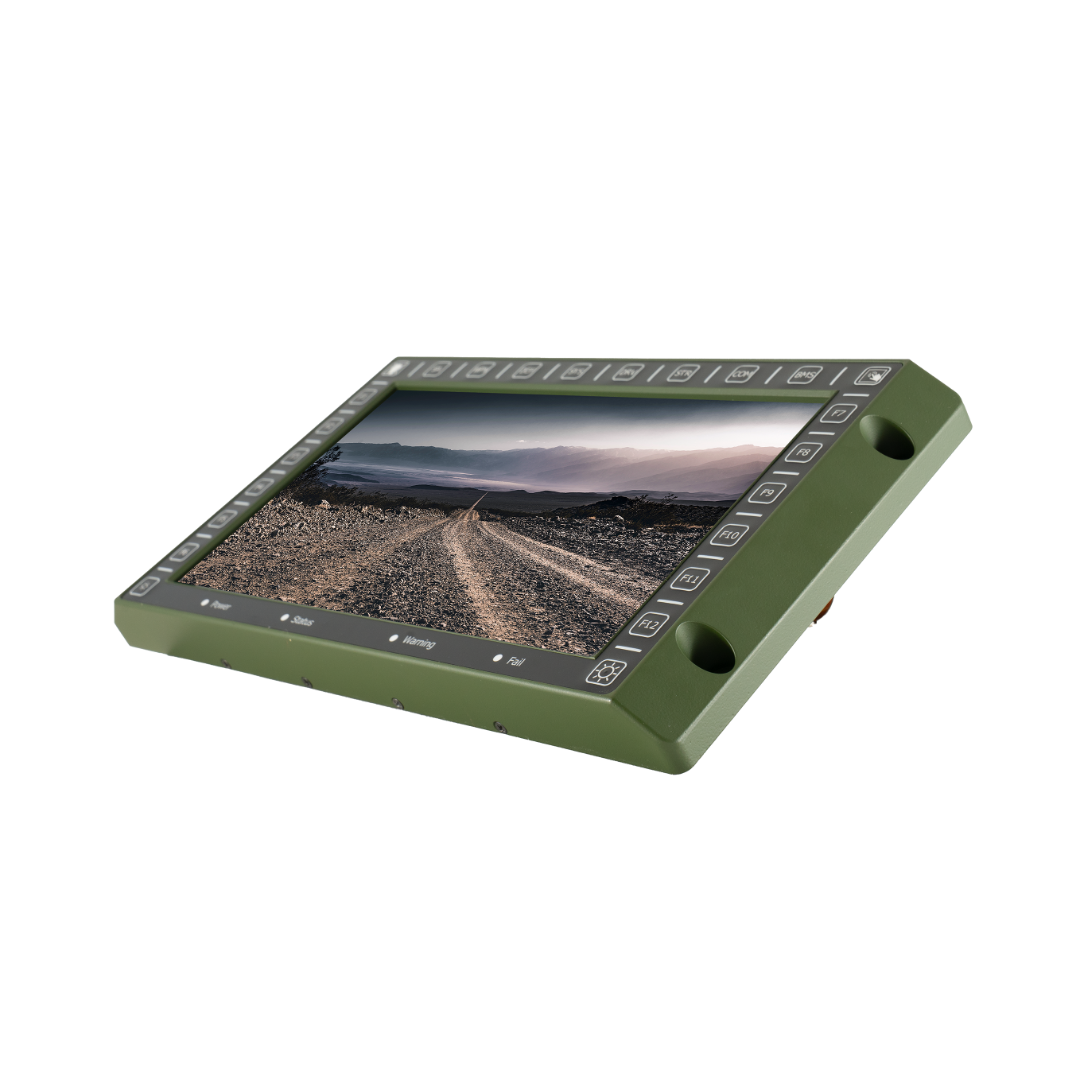

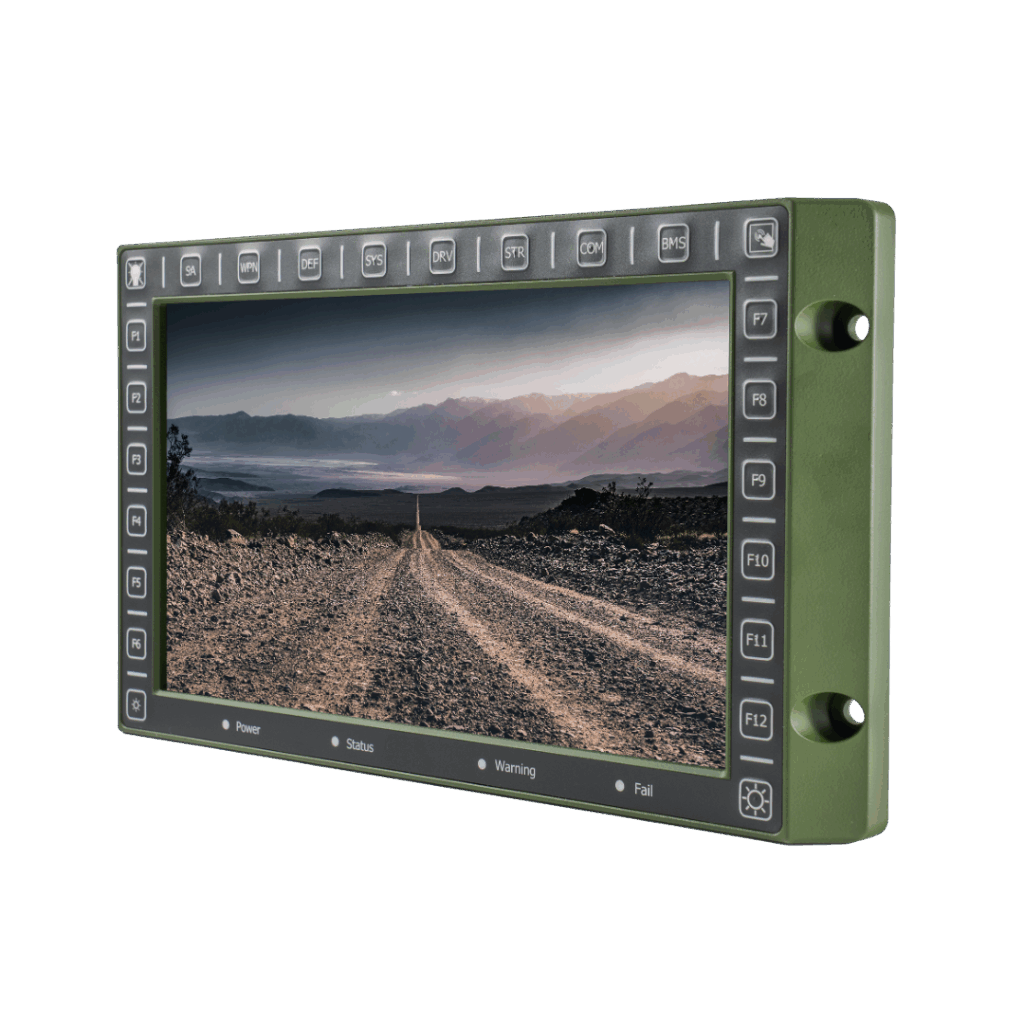

Full HD Display Unit 10"
Designed with the real world in mind.
an ultra-robust 10-inch display with high-definition display for ultimate view
BAG1001
Features
- High Resolution & Bright Display
- Rugged Housing & IP66 Protection
- Military-Grade Durability
- Flexible Signal & Communication Interfaces
- Wide Viewing Angle
- Compact & Lightweight Design
- Wide Voltage Range & Low Power Use
Overview
This 10.2″ TFT-LCD display offers Full HD resolution (1920×1080) and a high brightness of at least 800 cd/m², making it perfect for use in bright outdoor environments. Its strong aluminum housing with powder coating ensures durability, and with IP66 protection, it is resistant to dust and water. Built to military standards (MIL-STD-810G), it operates reliably in extreme temperatures from -46°C to +71°C and withstands shock and vibration.
The display features flexible connectivity with HD-SDI video input, Ethernet, CAN-Bus, and GPIO interfaces, allowing smooth integration into a wide range of systems. A wide viewing angle of ±85° ensures clear visibility from nearly any direction. Despite its ruggedness, the unit remains compact and lightweight, weighing under 3 kg. With a wide input voltage range of 16–32 VDC and low power consumption (max. 20W), it is ideal for both stationary and mobile applications.
Specifications
Display
- Panel: Color TFT-LCD
- Display size: 259,0 mm (10,2”)
- Active area (HxV): 225.792 x 127.008 mm
- Aspect ratio: 16:9
- Resolution (HxV): 1920 x 1080 Pixel
- Number of colors: 16.7 Mio
- Pixel pitch (HxV): 0.1176 x 0.1176 mm
- Contrast ratio: typ. 1000:1
- Brightness: typ. ≥ 800 cd/m2
- Viewing angle (HxV): typ. ± 85°
Video Signal
- Signal Input: HD-SDI up to 3G
- Signal Output: similar to Video-Input
- Video Standards: 720p60, 1080p25, 1080p30, 1080p50, 1080p60
Power Supply
- Signal Input: HD SDI up to 3G
- Signal Output: Loopthrough output
Connector

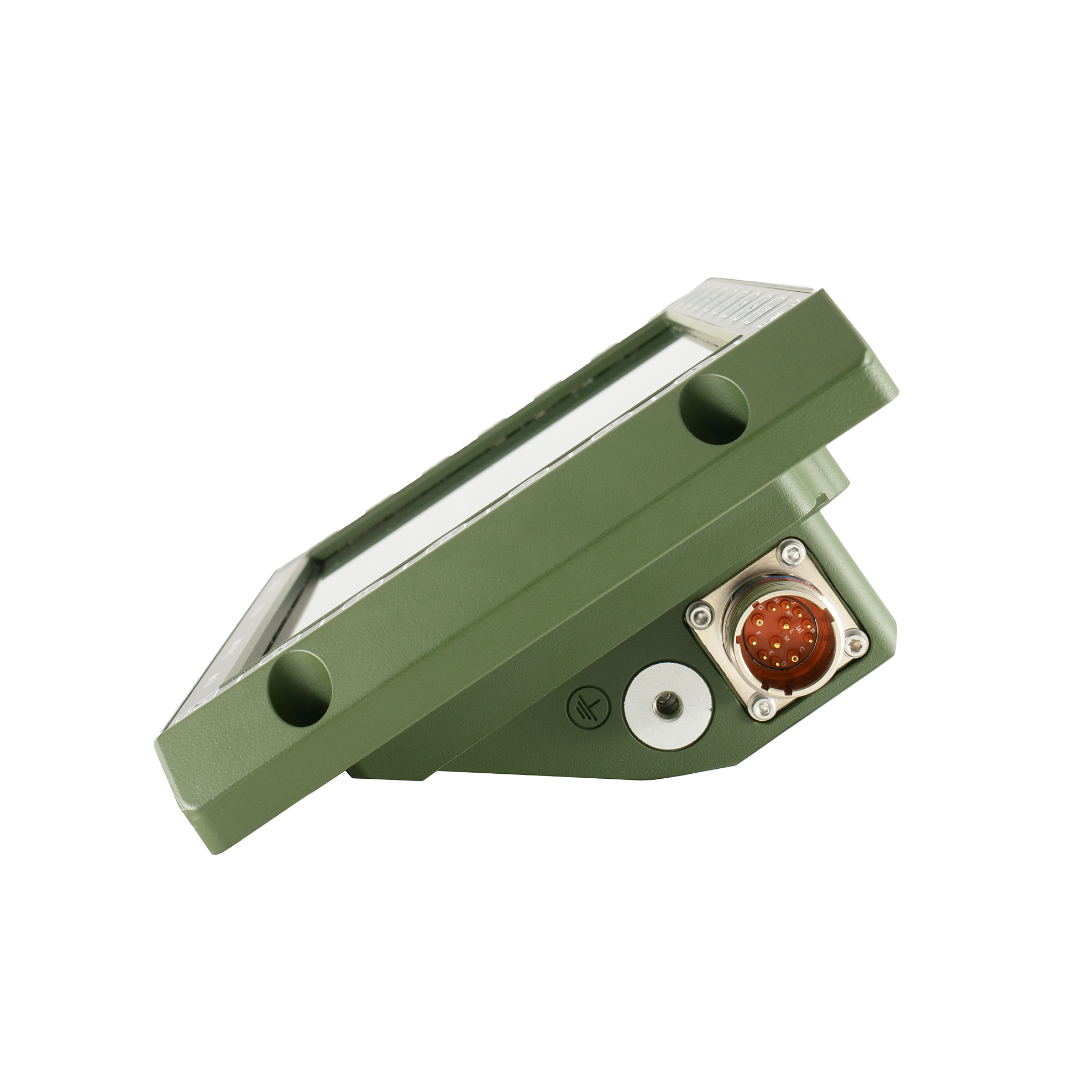

- Connector X1: Combined Input
Type: D38999/20FE02P
Video-Input: Coax contact 75Ω
Power-Input: Pin (Male) CAN0 / CAN1-Input Pin (Male)
Ethernet Pin (Male)
GPIOs Pin (Male) Service interface Pin (Male) - Connector X2: Combined Output
Type: D38999/20FE02SN
Video-Output: Coax contact 75Ω
Power-Output: Socket (Female)
CAN0-Output Socket (Female)
Mounting
- Panelmount: 4x M6 frontside

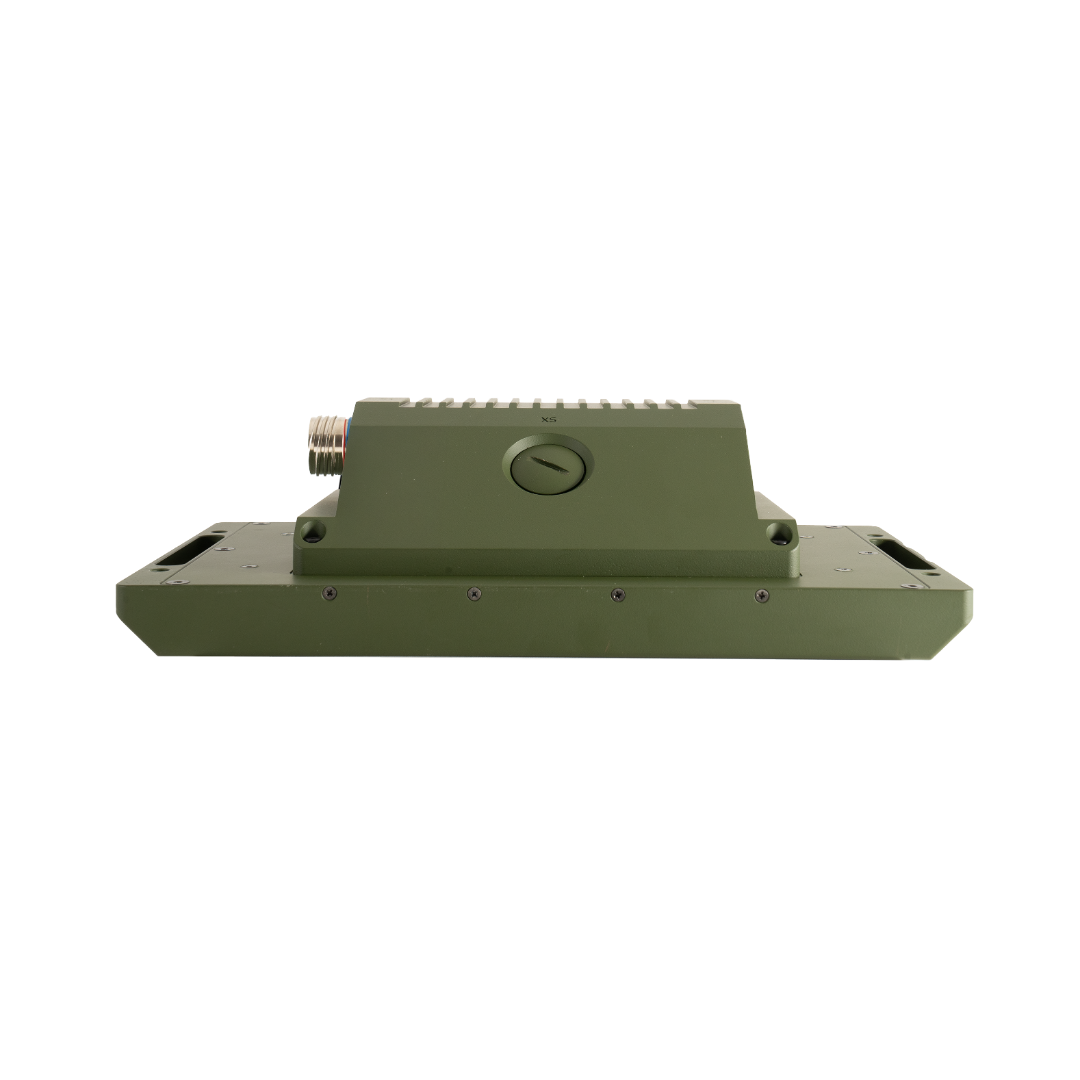

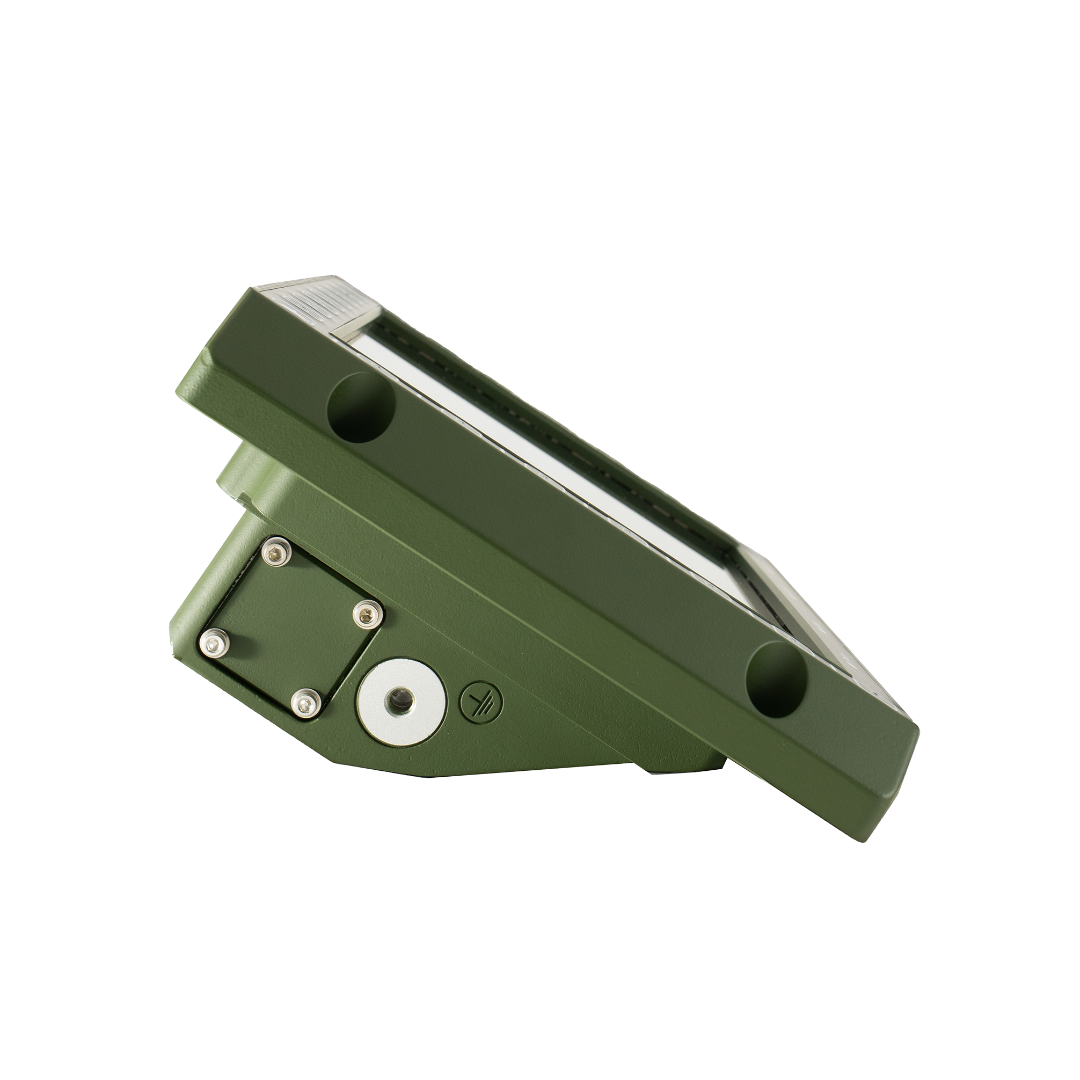

Housing
- Material: Aluminium Alloy
Powder coated
RAL 6031 - ´Width: 298 mm
- Heigth: 165 mm
- Depth w/o Connector: 72 mm
- Weight: approx. < 3 kg
Environment
- Protection. IP66
integrated /connected - Operating temp.: -46°C to +71°C
- Humidity: 8% … 100%
- Shock: 6g acc. to MIL-STD 810G method 516.6 Proc: I, II
- Vibration: acc. to MIL-STD-810G
method 514.6 Cat. 20 10 Hz to 500 Hz - EMC: acc. to MIL-STD 461 F (G)
Controls & Communication
- Keys: Frontpanel
- Communication: CAN- Bus
Ethernet
GPIOs
