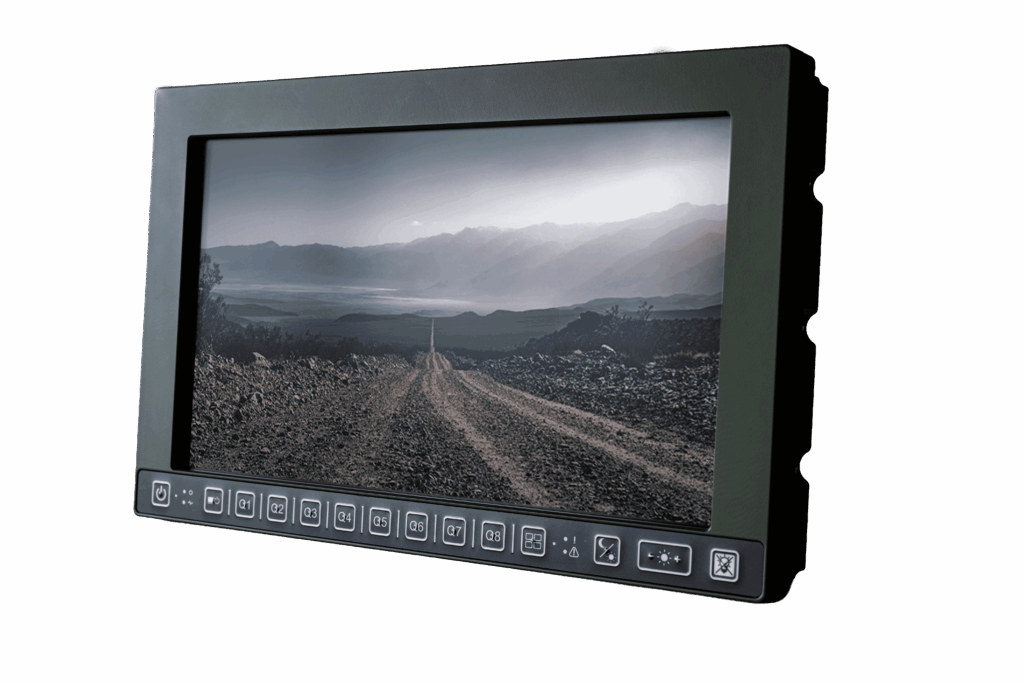

Full HD Smart Display 15.6"
Designed with the real world in mind.
an ultra-robust 15-inch smart display for ultimate view
Features
- 15.6" Full HD Touch Display
- IP65 Protection & MIL-STD Certified
- Wide 85° Viewing in All Directions
- HD-SDI Input
- Backlit Programmable Buttons
- 12 VDC Power Supply
- PCAP Touchscreen with Mesh
BAG1507
Overview
This 15.6” rugged TFT-LCD features Full HD resolution (1920×1080) and a PCAP touchscreen with Mesh, optically bonded for clarity and durability. With IP65 protection and compliance with MIL-STD-810 and MIL-STD-461, it’s built for tough environments. The display offers HD-SDI video input and backlit user-programmable buttons in the front.
It runs on 12 VDC and supports RS422 communication. Wide 85° viewing angles and day/night modes ensure excellent usability in all conditions.
Specifications
Display
- Panel: Color TFT-LCD
- Display size: 15,6”
- Active area: 344,16×193,59mm(HxV)
- Resolution: 1920 x 1080 Pixel (HxV)
- Display color: 16,7 M
- Pixel pitch: 0,179×0,179 mm (HxV)
- Viewing angle: 85° in each direction
- Response time: typ. 30 ms (Tr+Tf)
- Contrast ratio: 900:1
- Luminance: 900 cd/m²
Video Signal
- Signal Input: HD SDI up to 3G
Power Supply
- Supply voltage: 12 VDC
- Power consumption: max. 50W @12VDC

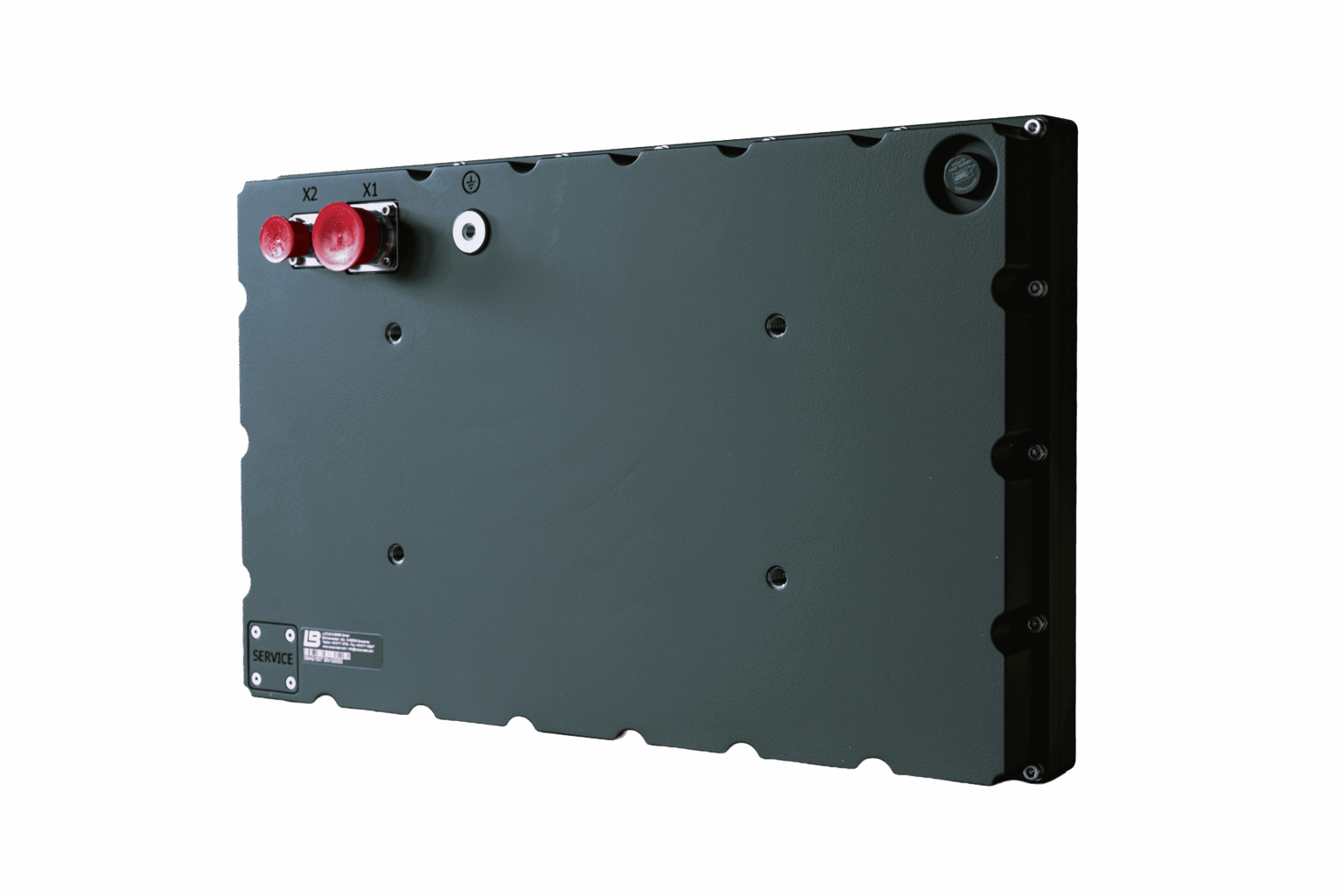

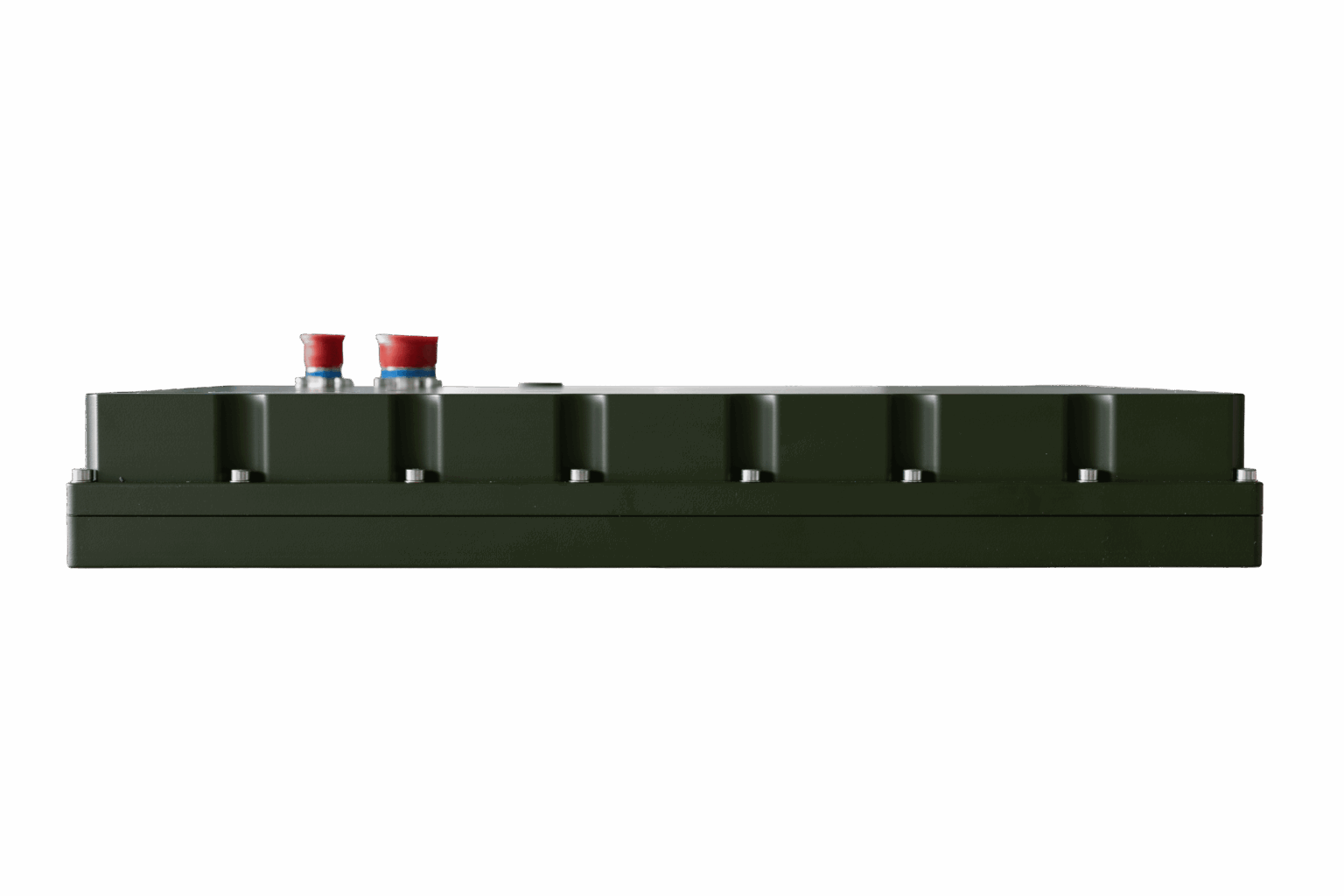

Connector
- Combined Input: 12VDC, HD-SDI, RS422, USB and Power_SW
- Connector: D38999/20FD97PA
- USB Input: 2x USB for HMIs
- Connector: D38999/20FA35SN
- Grounding: M6 rearside
Mounting
- Panel mounting: 4xM8 rearside

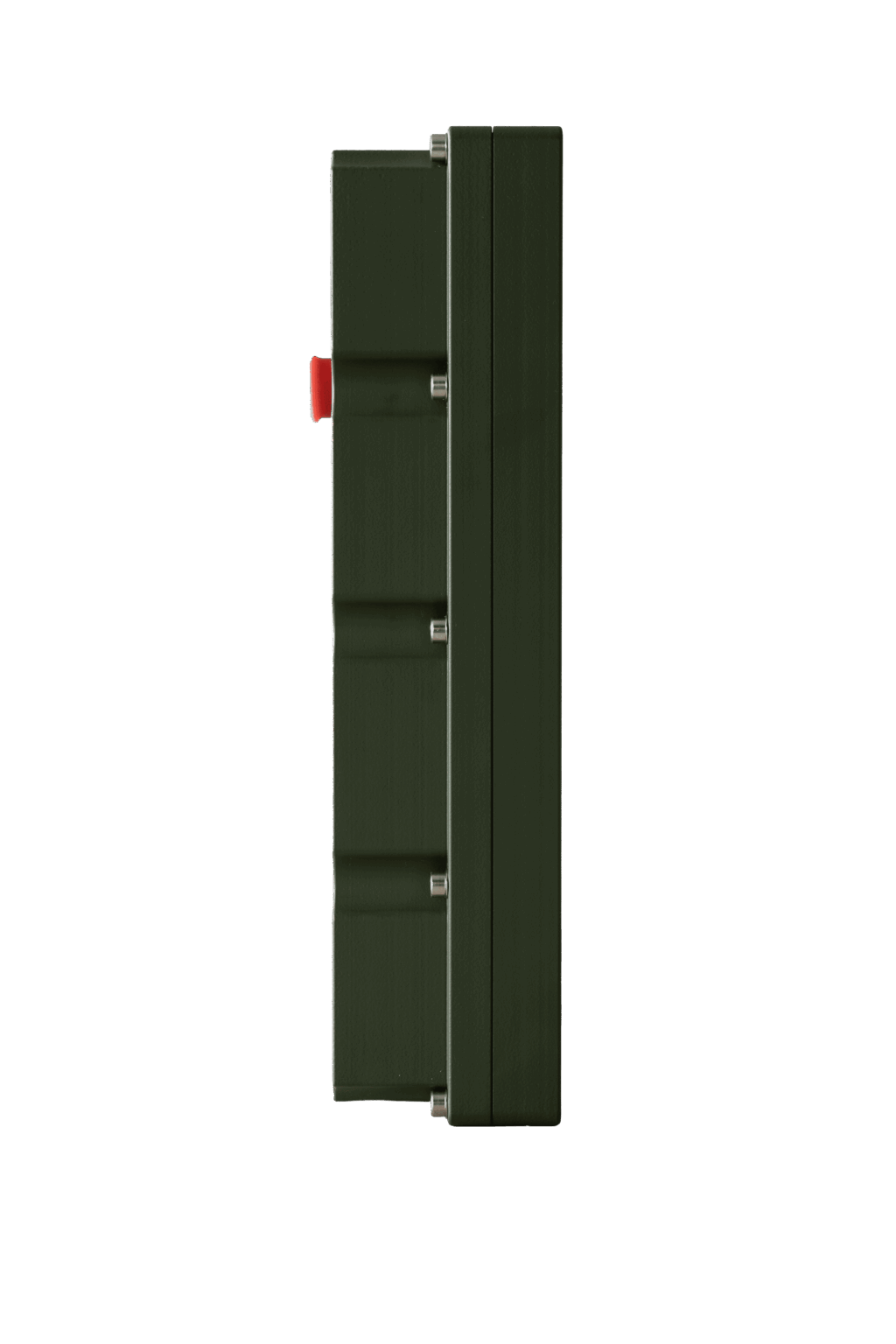

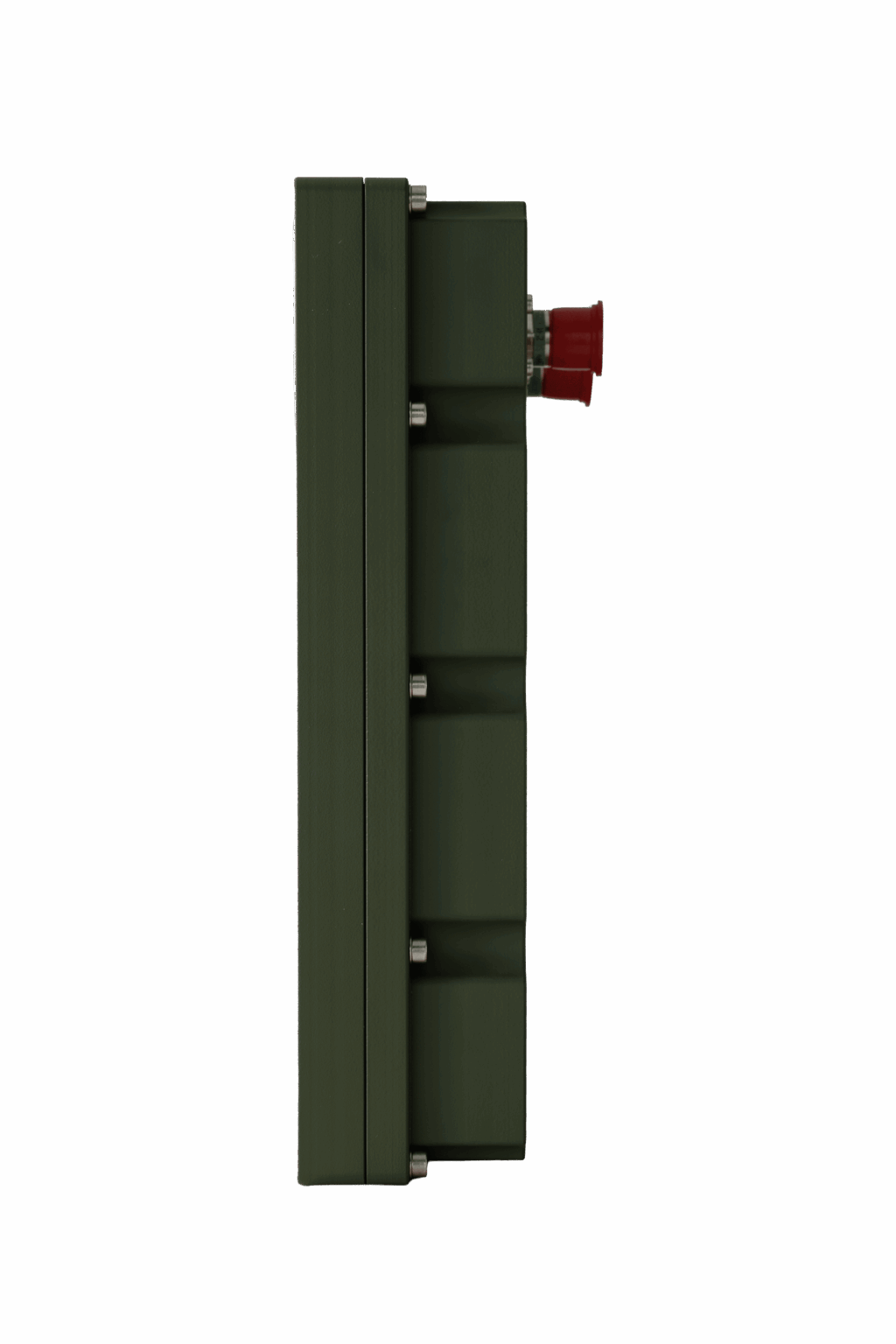

Housing
- Material: Alloy Surtec650 Powder coated RAL t.b.d.
- Width: 406 mm
- Heigth: 256 mm
- Depth without Connector: 62mm
- Weight: 6.0 kg
Environment
- Unit is designed for environmental condition according to following MIL-Standards.
- Operating temp.: -32°C to +63°C
- Humidity: 8% … 100%
- Temp./Shock/Vibration: MIL STD 810
- EMI/EMC: MIL STD 461
- IP Protection: IP65

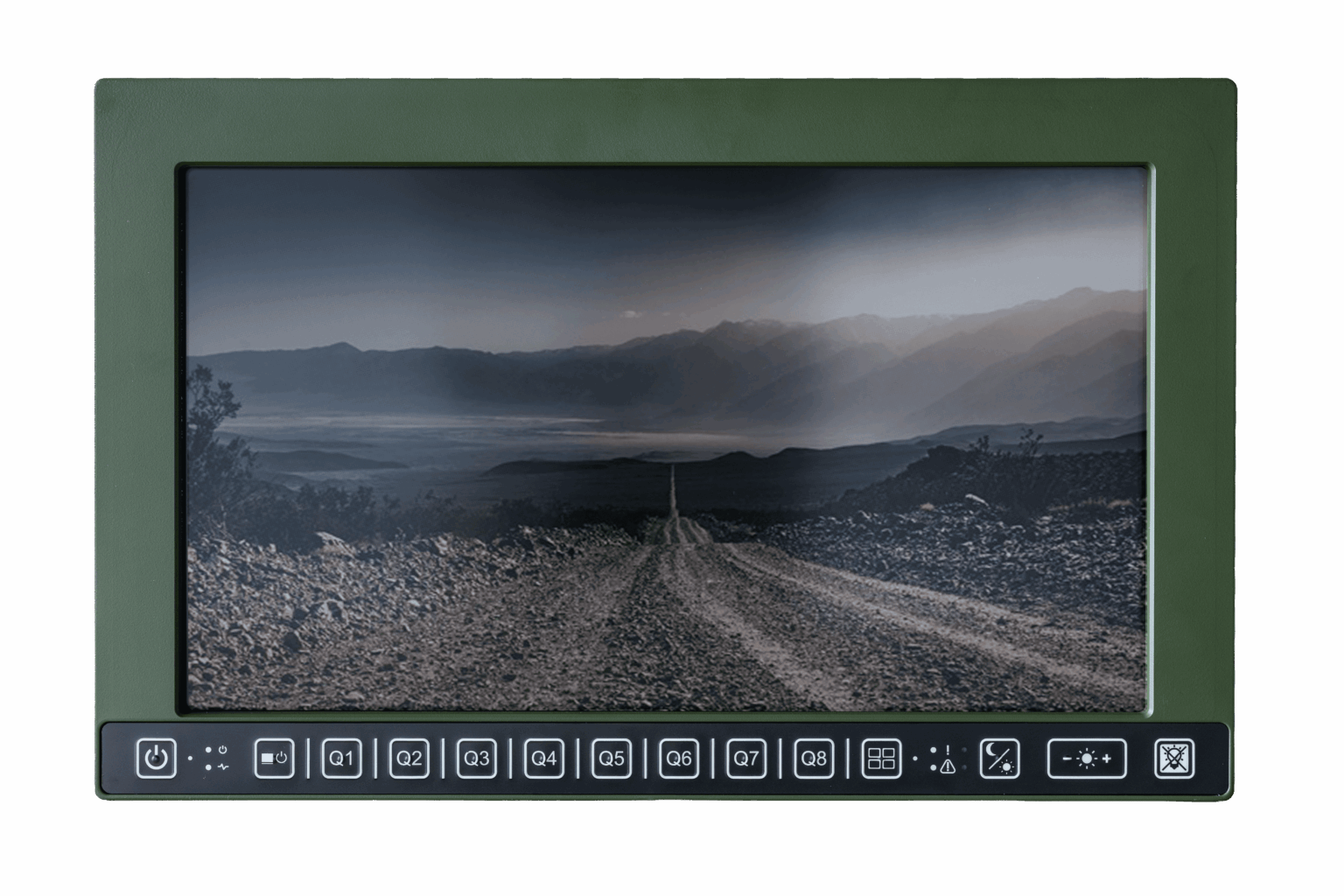

Controls & Communication
- Membrane keys
- User buttons: programmable buttons
- Key Backlight: switchable
- Day/Night via button frontside
- Brightness (Backlight): buttons frontside
- Soft-Power On/Off: button frontside
- Communication: RS422
- Touchscreen: PCAP Touch with Mesh
- Mesh optically bonded with the TFT-Modul
