Full HD Smart Display 31.5"
Designed with the real world in mind.
an ultra-robust 15-inch smart display for ultimate view
Features
- 31.5" Full HD Touch Display
- IP65 Protection & MIL-STD Certified
- Wide 89° Viewing in All Directions
- HD-SDI Input
- Backlit Programmable Buttons
- 12 VDC / 28 VDC Power Supply
- PCAP Touchscreen with Mesh
BAG3201
Overview

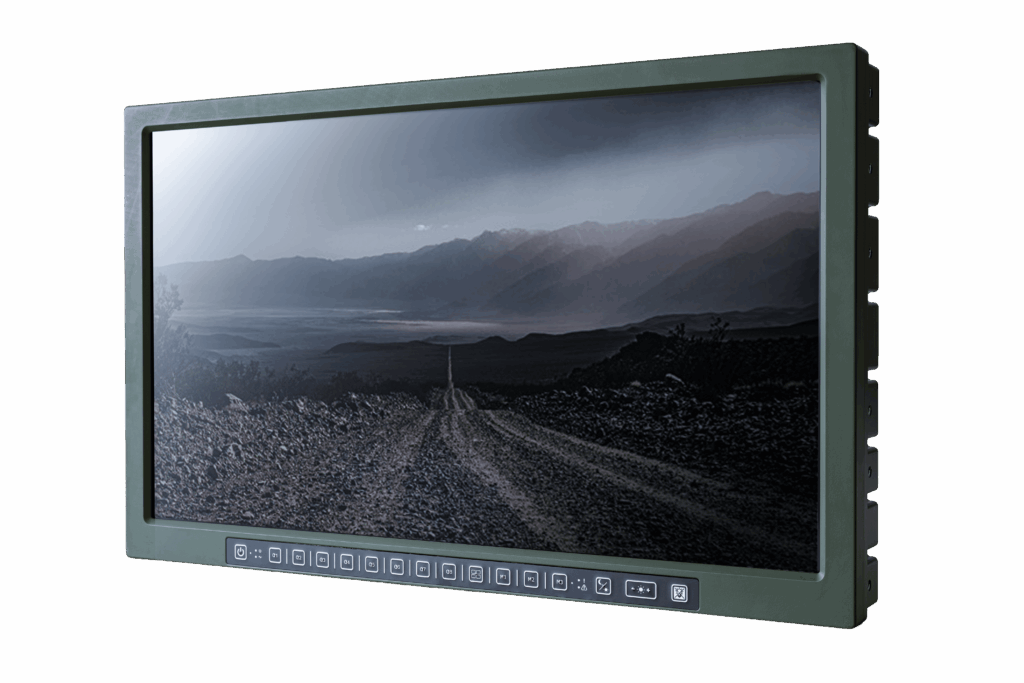

This 31.5” rugged TFT-LCD features Full HD resolution (1920×1080) and a PCAP touchscreen with Mesh, optically bonded for clarity and durability. With IP65 protection and compliance with MIL-STD-810 and MIL-STD-461, it’s built for tough environments. The display offers HD-SDI video input and backlit user-programmable buttons in the front.
It runs on 28 VDC and 12 VDC and supports RS422 communication. Wide 89° viewing angles and day/night modes ensure excellent usability in all conditions.
Specifications
Display
- Panel: Color TFT-LCD
- Display size: 31.5”
- Active area: 698.4×392.85mm(HxV)
- Resolution: 1920 x 1080 Pixel (HxV)
- Display color: 16,7 M
- Pixel pitch: 0,364×0,364 mm (HxV)
- Viewing angle: 89° in each direction
- Response time: typ. 10 ms (grey to grey)
- Contrast ratio: 1000:1
- Luminance: 900 cd/m²
Video Signal
- Signal Input: HD SDI up to 3G
Power Supply
- Supply voltage: 12 VDC / 28 VDC
- Power consumption: max. 75W @28VDC
- Power consumption: max. 30W @12VDC

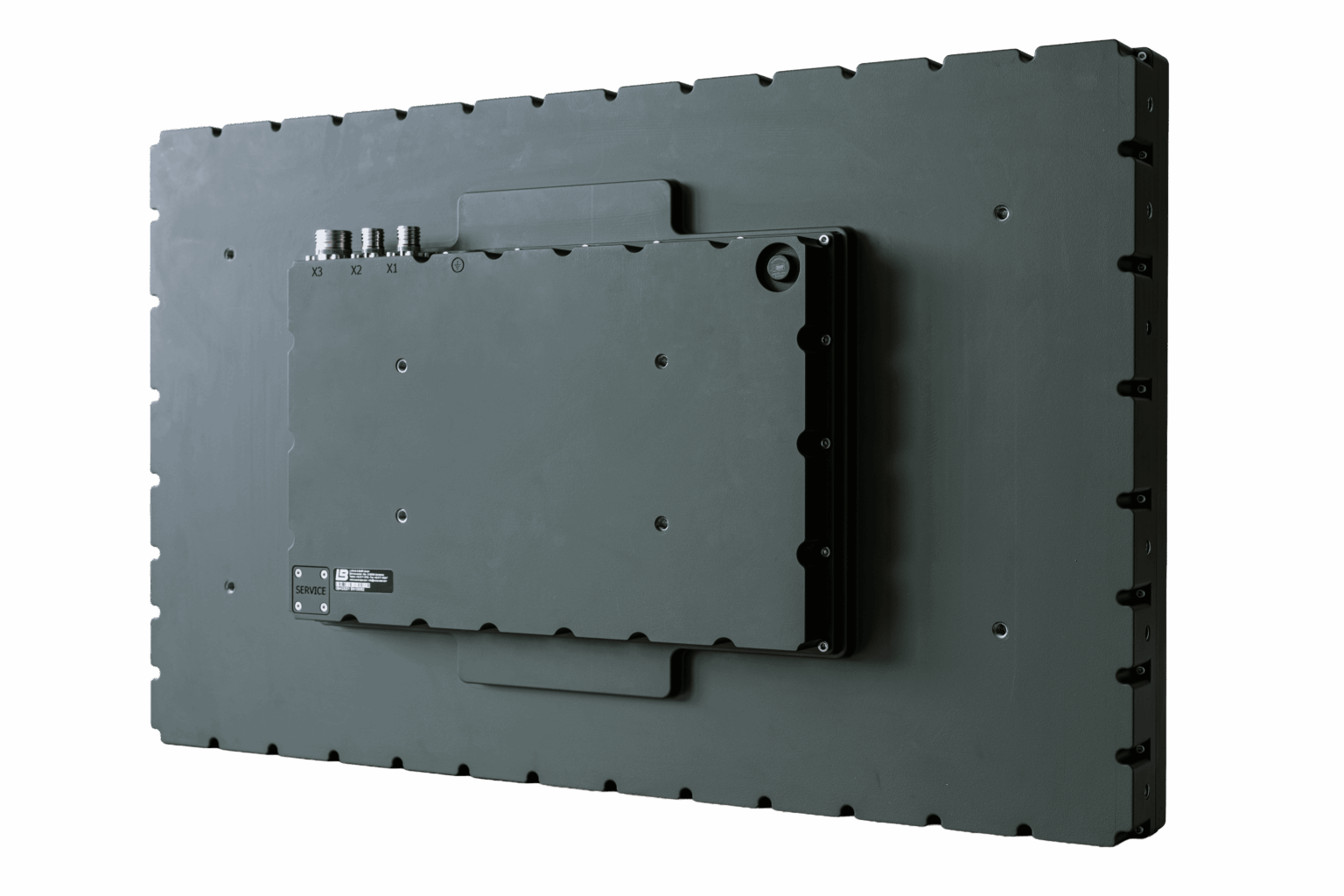

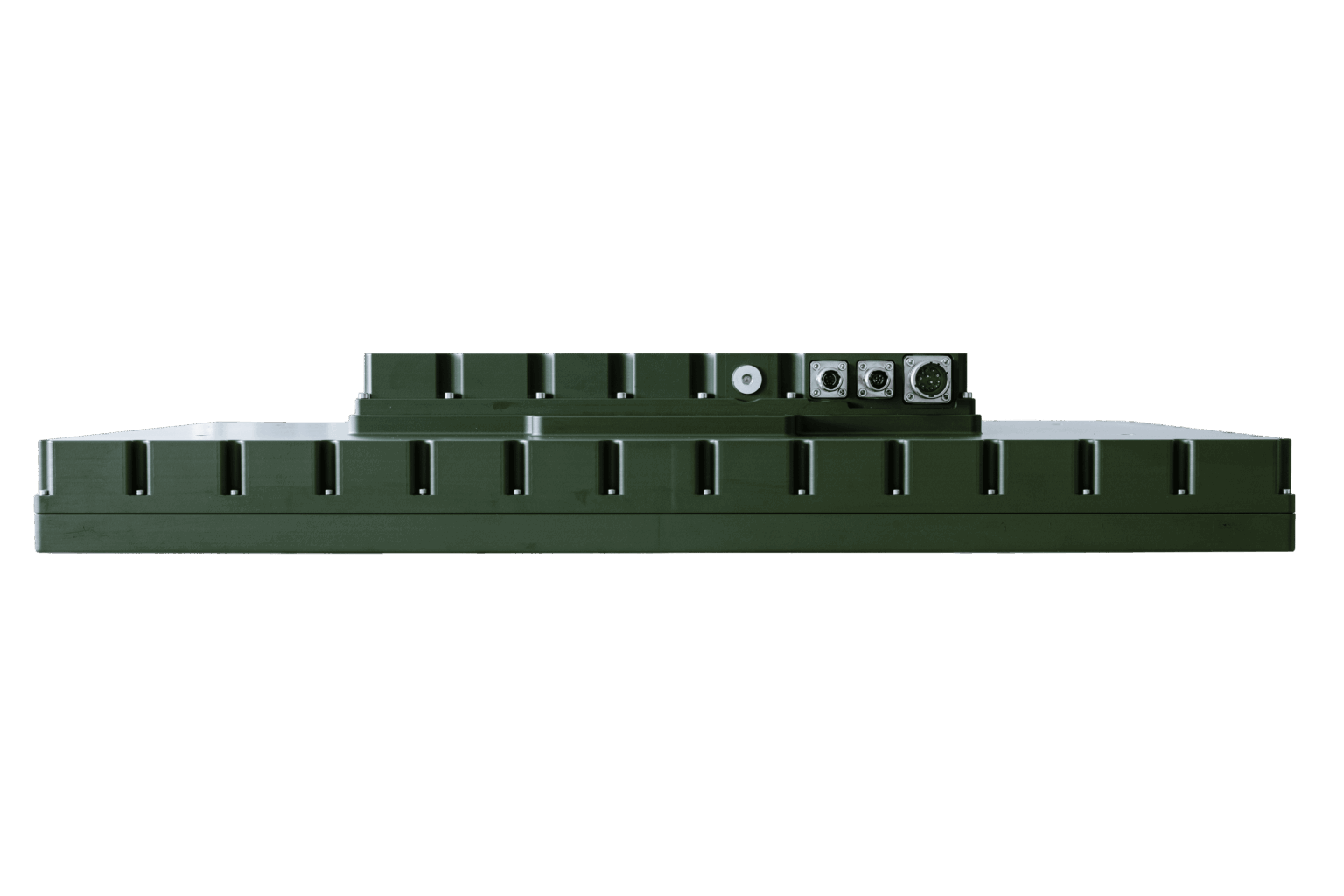

Connector
- Combined Input: 12VDC, HD-SDI, RS422, USB and Power_SW
- Connector: D38999/20FD97PA
- USB Input: 2x USB for HMIs
- Connector: D38999/20FA35SN
- Power Input: 28VDC
- Connector: D38999/20FA98PN
- Grounding: M6 rearside
Mounting

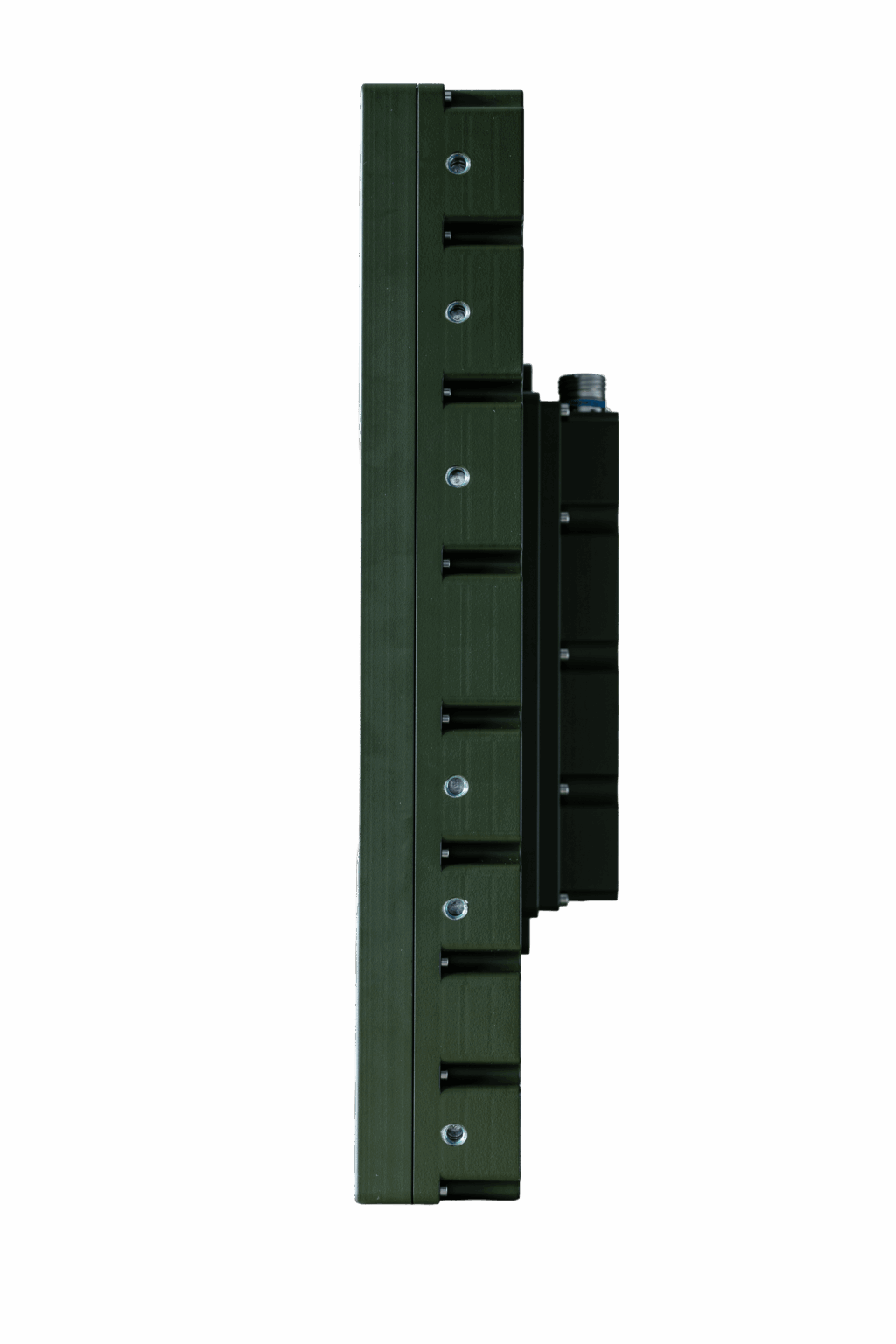

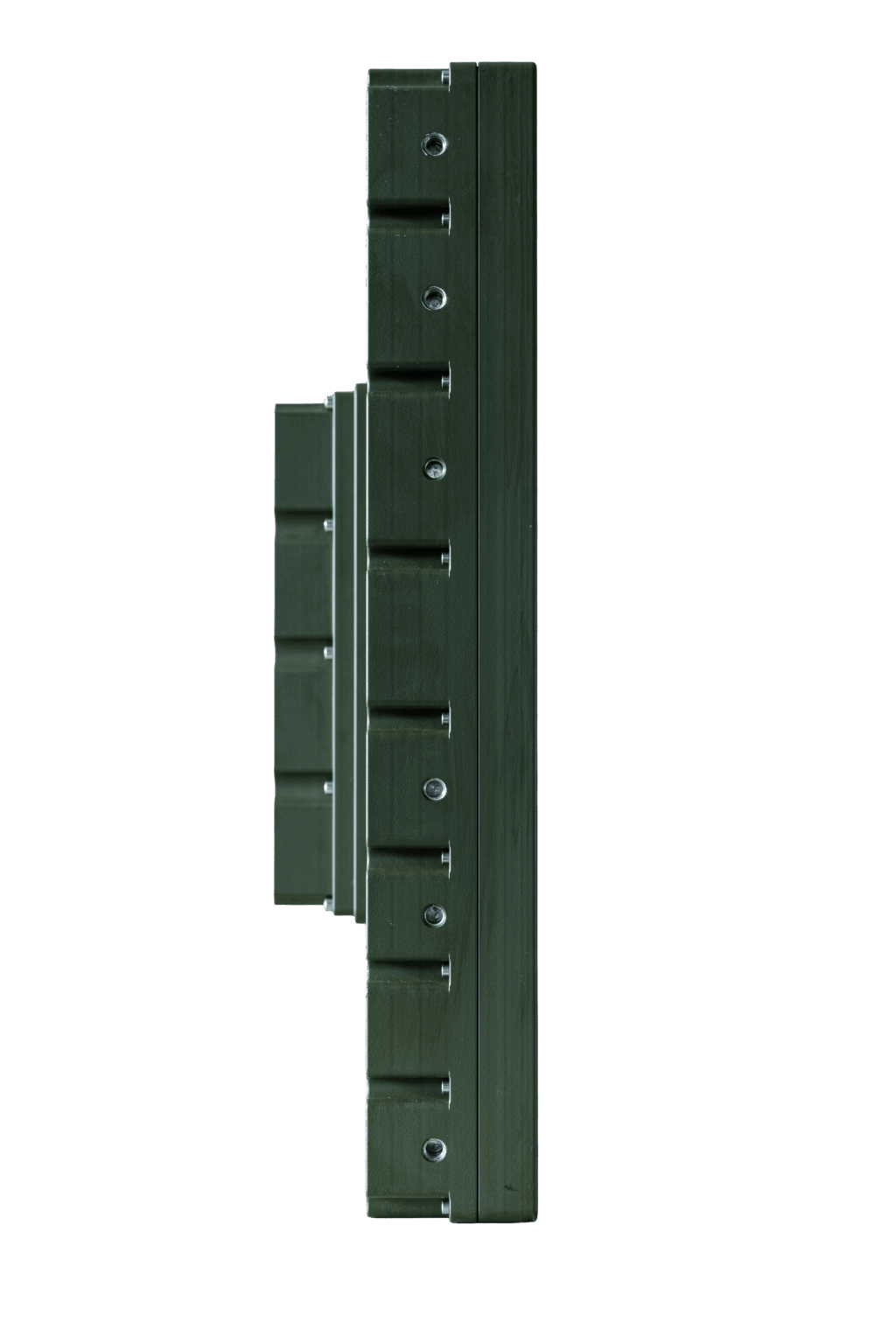

- Panel mounting: 4xM8 rearside, 8xM8 sidemount

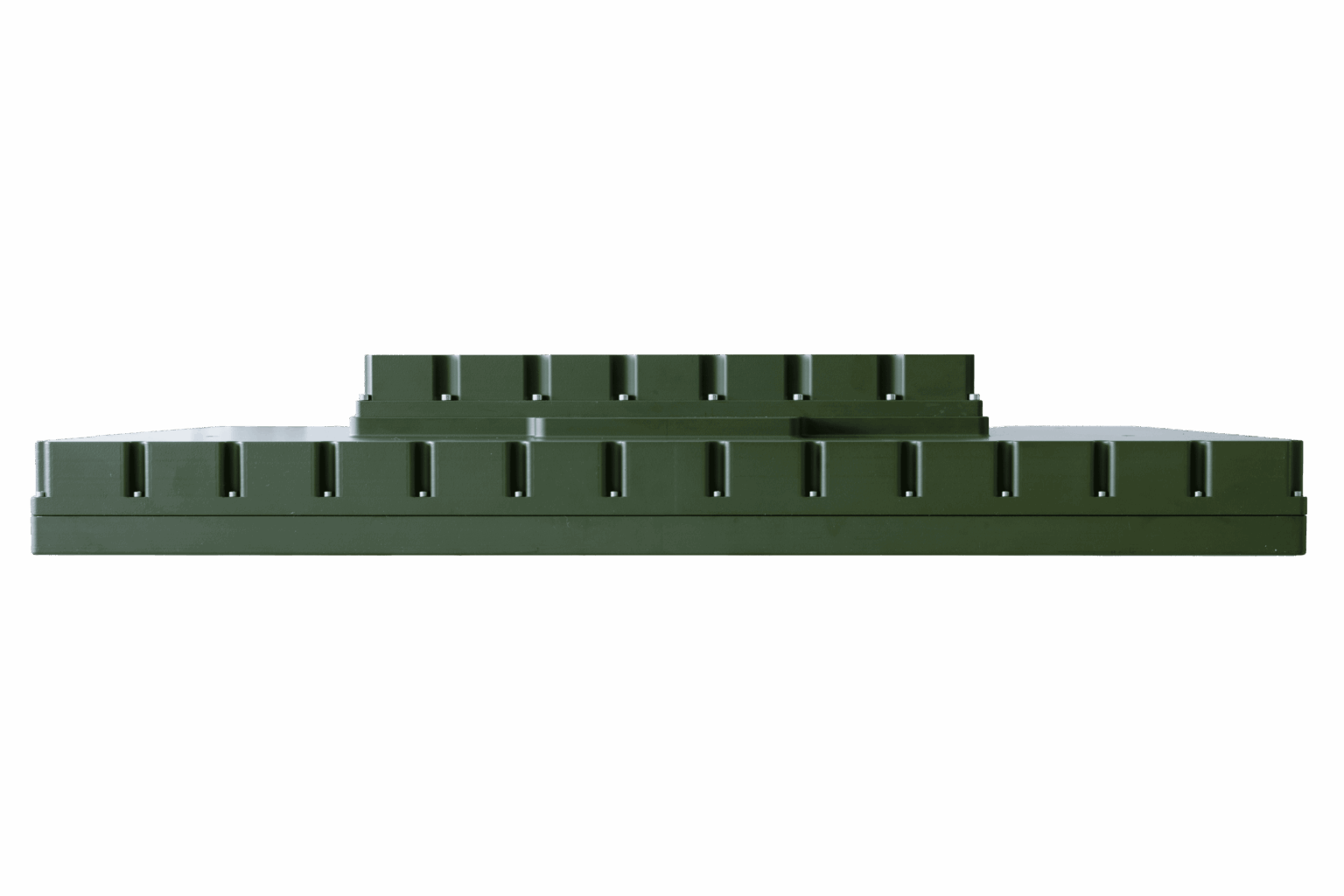

Housing
- Material: Alloy Surtec650 Powder coated
- Width: 761.2 mm
- Heigth: 464 mm
- Depth without Connector: 123 mm
- Weight: 27.5 kg
Environment
- Unit is designed for environmental condition according to following MIL-Standards.
- Operating temp.: -40°C to +63°C
- Humidity: 8% … 100%
- Temp./Shock/Vibration: MIL STD 810
- EMI/EMC: MIL STD 461
- Power: mIL STD 1275
- IP Protection: IP65
Controls & Communication
- Membrane keys
- User buttons: programmable buttons
- Key Backlight: switchable Day/Night via button frontside
- Brightness (Backlight): buttons frontside
- Soft-Power On/Off: button frontside
- Communication: RS422
- Touchscreen: PCAP Touch with Mesh
- Mesh optically bonded with the TFT-Modul
