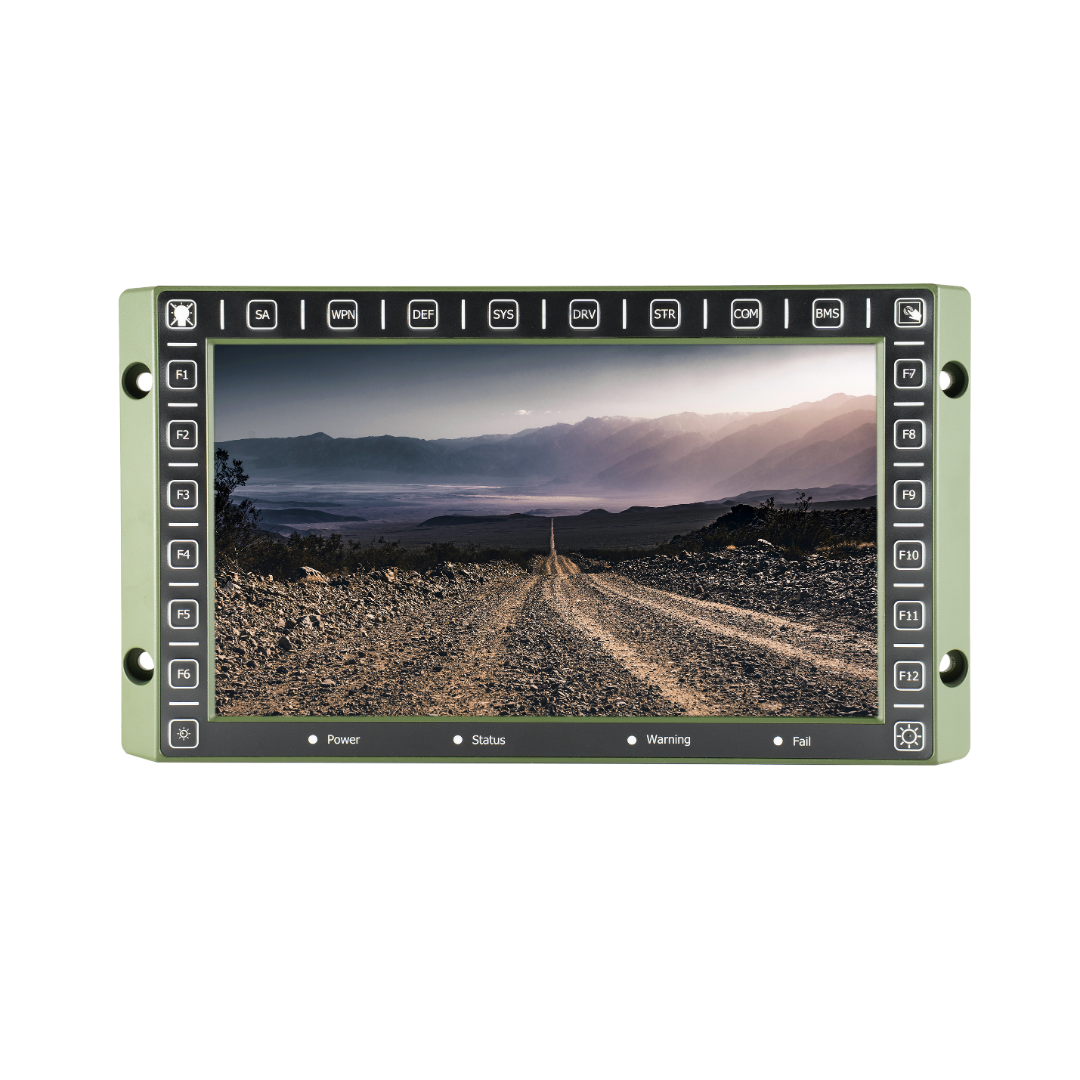

Control and Display Unit 10"

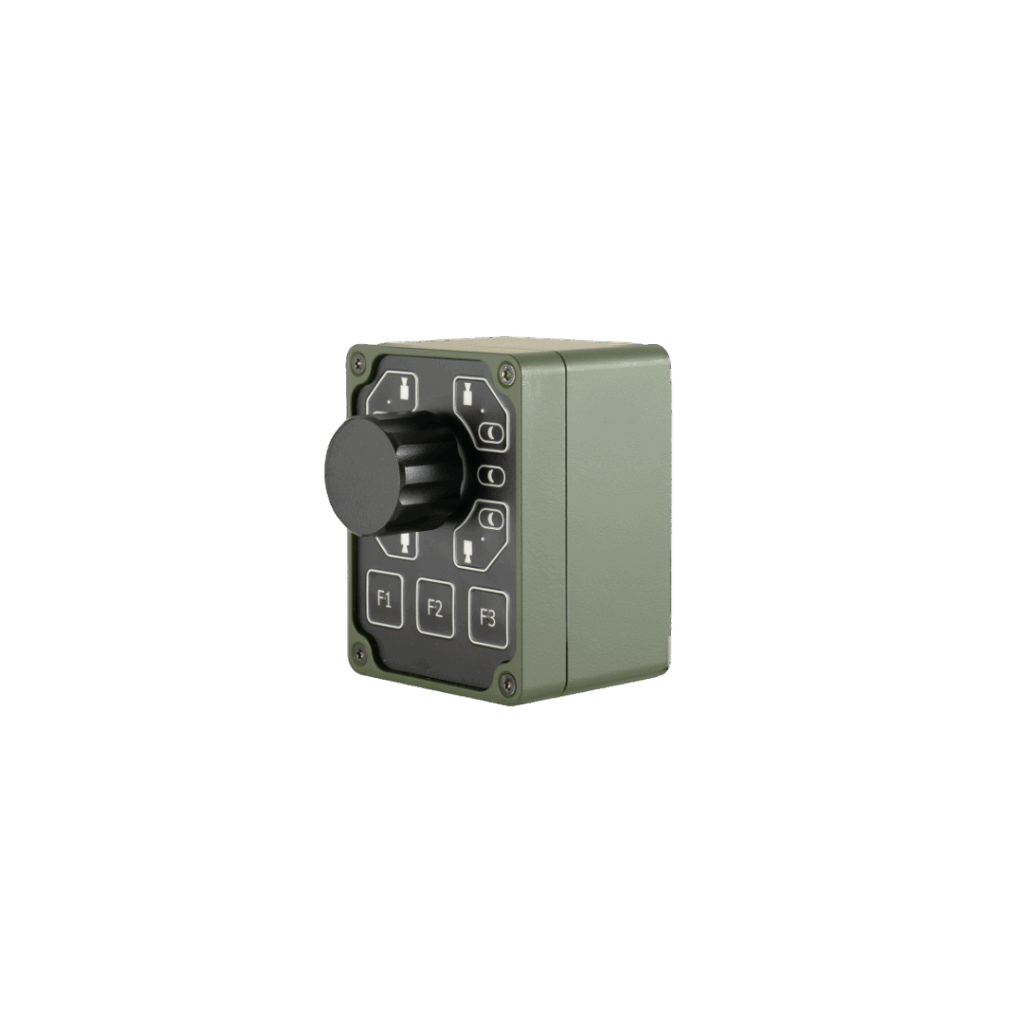

Rugged and Sealed Three-in-One Joystick - 0BT01
Designed with the real world in mind.
an ultra-robust 10-inch display with high-definition display for ultimate view
Features
- Three-in-One Joystick with Push Function
- 7-Button Membrane Keyboard with LED Backlight
- CANopen and USB 2.0 Interfaces
- High Durability – Up to 5 Million Actuations
- Precise Control – 2-bit Output & Low Contact Bounce
- IP67 Sealing for Harsh Environments
- Wide Operating Range – -40°C to +85°C
Overview
This rugged Three-in-One Joystick comes with a built-in push function and a 7-button membrane keyboard, all equipped with LED backlighting. It supports both CANopen and USB 2.0 for easy integration into control systems. With a mechanical life of up to 5 million actuations and IP67 protection, it’s built to last in tough environments.
The joystick provides accurate 2-bit output signals with minimal contact bounce for precise input. It operates reliably in extreme temperatures from -40°C to +85°C, making it ideal for military and industrial use.
1. For storage, 1GB = 1 billion bytes; actual formatted capacity less.
2. Requires MIL-STD 461F 90W AC Adapter sold separately.
3. Computers configured with a 32-bit operating system can address up to 3GB of system memory. Only computers configured with a 64-bit operating system can address 4 GB or more of system memory. 4GB memory Requires a single 4GB memory module.
4. Weight varies by configuration and manufacturing process
Specifications
Joystick
- Supply Current: 5mA, max.
- Output Code: 2-bit
Color RAL.
-
Logic Output:
-
neutral Pos. 2,5+/-,5Vdc
-
High-state Pos. >4,5Vdc
-
Low-state Pos. <0,5Vdc
-
- Mechanical Life: 1mio actuations in each directions, minimum
- Actuation Force: 14,7N +/- 2,9N
- Angle of Throw: 3,5°+2/1° X&Ydirection only, at electrical contact
Pushbutton of Joystick
-
Rating: 10 mA at 5Vdc, resistive
-
Contact Resistance : Less than 10 Ohm
-
Contact Bounce :
-
<4 ms make
-
<10 ms break
-
-
Mechanical Life:1 mio actuations, min.
-
Actuation Force: 15,7N +/- 3,9N
-
Push Button Travel: 0,4mm +/- 0,13mm
Rotary Electrical
-
Operating Voltage: 5.00 +/- 25Vdc
-
Supply Current: 20 mA, max. at 5 Vdc
-
Min. Sink Current: 2,0 mA for 5 Vdc
-
Output Code: 2-bit quadrature. channel A leads channel B by 90° electrically during clockwise rotation of shaft
-
Optical Rise Time: 30µs, max.
-
Optical Fall Time: 30µs, max.
-
Mechanical Life: 1 million cycles
-
Shaft Push out Force: 27,20kg
-
Shaft Side load Force: 11,34kg
-
Max. Rotation Speed: 100 Rpm
Membrane Keyboard
-
Number of Buttons: 7
-
Ilumination: with LED Color RAL.
-
Switch Type: 4-Leg Metal Dome
-
Mechanical Life: up to 5 min actuations
-
Push Force: 8,15N-9,17N
Weight
- Total: approximately 0,3 kg
Signals
-
CAN: KMW CANopen
-
USB: 2.0
-
CAN Connector: VG96912 A12-35PN
-
USB Connecteor: VG96912 A8-35SN
Environmental
-
Storage temperature: -46° … +85 °C
-
Operating temperature: -40° … +85 °C
-
Storage humidity: 5…90 %RH
-
Operating humidity: 5…90 %RH
-
Vibration: AECTP400, Annex B401, Figure B-4
-
Shock: 500G+/-50g, 0,5ms in each direction
-
Sealprotection: IP6
Power Supply
- Vehicle Power: 12VDC – 32 VDC In accordance to VG96916
Look at similar products
Control Display Unit 13"
an ultrathin 13-inch display with high-definition RGB-colors for ultimate view

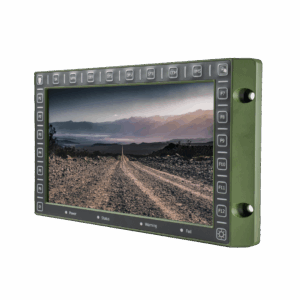

Control Display Unit 15"
