Rugged Control Display Unit 11"

AFS01

Designed with the real world in mind.

Autarchic Vision System

Features

AFS01

Overview

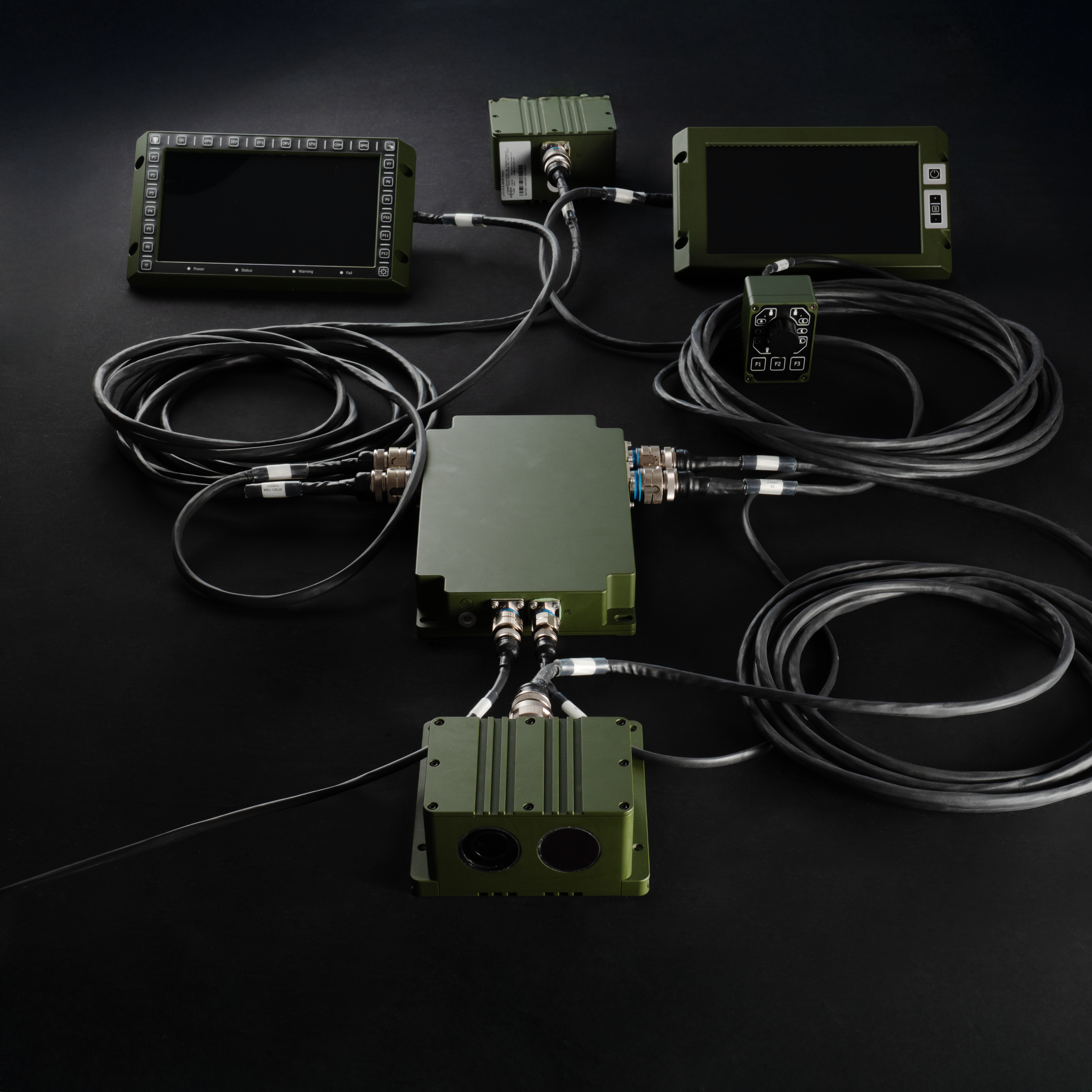

The AFS01 is a autarchic driver vision system for retrofitting in various vehicles. The system consists of two displays, two dual cameras, a video distributor, and a control unit.

  • The driver vision system has a dual camera for the front and a dual camera for the rear.
  • The driver vision system can be used at night or in the dark as well as during the day, as the dual cameras consist of a day camera and a night vision camera.
  • Two displays are used to show the different camera images.
  • The video distributor switches the various camera images to the two displays and supplies the cameras and displays with power.
  • The only interface to the vehicle is the vehicle electrical system (power supply).
  • This is connected to the video distributor.

Specifications

Day Camera

  • Sensor: CMOS
  • Resolution: 1920×1080
  • Video-Output: HD-SDI

Night Camera

  • Sensor: Uncooled Thermal Imager
  • Resolution: 640×480 / 1024×768
  • Frequency Band: 8-14μm
  • Video-Output: CVBS / HD-SDI

Power Supply

  • Supply voltage: 16…32 VDC
  • Power consumption: max. 20W @ 28VDC

Mounting

  • Mount: 4x M8

Housing

  • Material: Aluminium Alloy
  • Powder coated RAL 6031
  • Width: 140 mm
  • Heigth: 79 mm
  • Depth w/o Connector: 100 mm
  • Weight: approx. < 1.5 kg

Controls and Communication

  • Communication: COM to VVB

Connector

  • Connector X1: Combined Input
  • Type: D38999/20FD97
  • Video-Input: Coax contact 75Ω Power
  • Input: Pin (Male) COM-Input Pin (Male)
