Designed with the real world in mind.
ultra-robust display with high-definition display for ultimate view
Features
- 10.2“ display
- Full-HD
- High resolution and brightness
- Wide Viewing Angle
- CAN-Bus

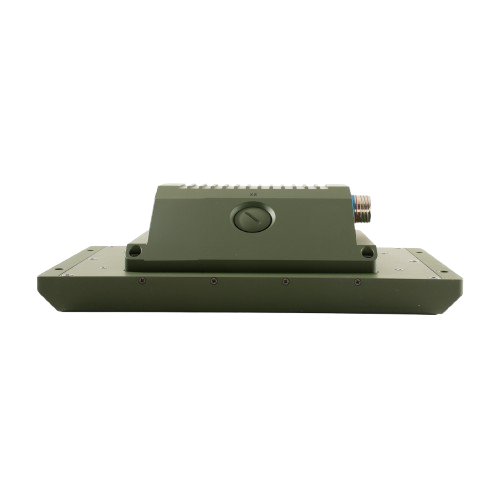

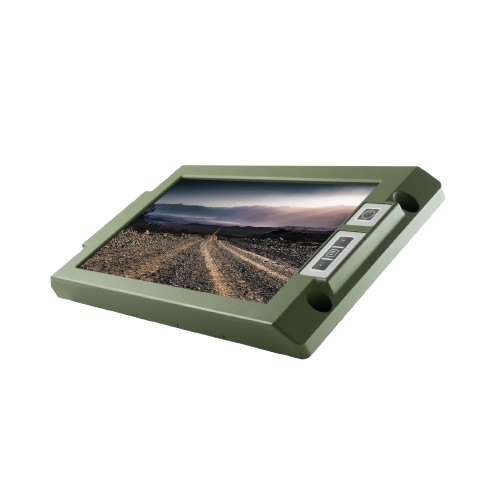

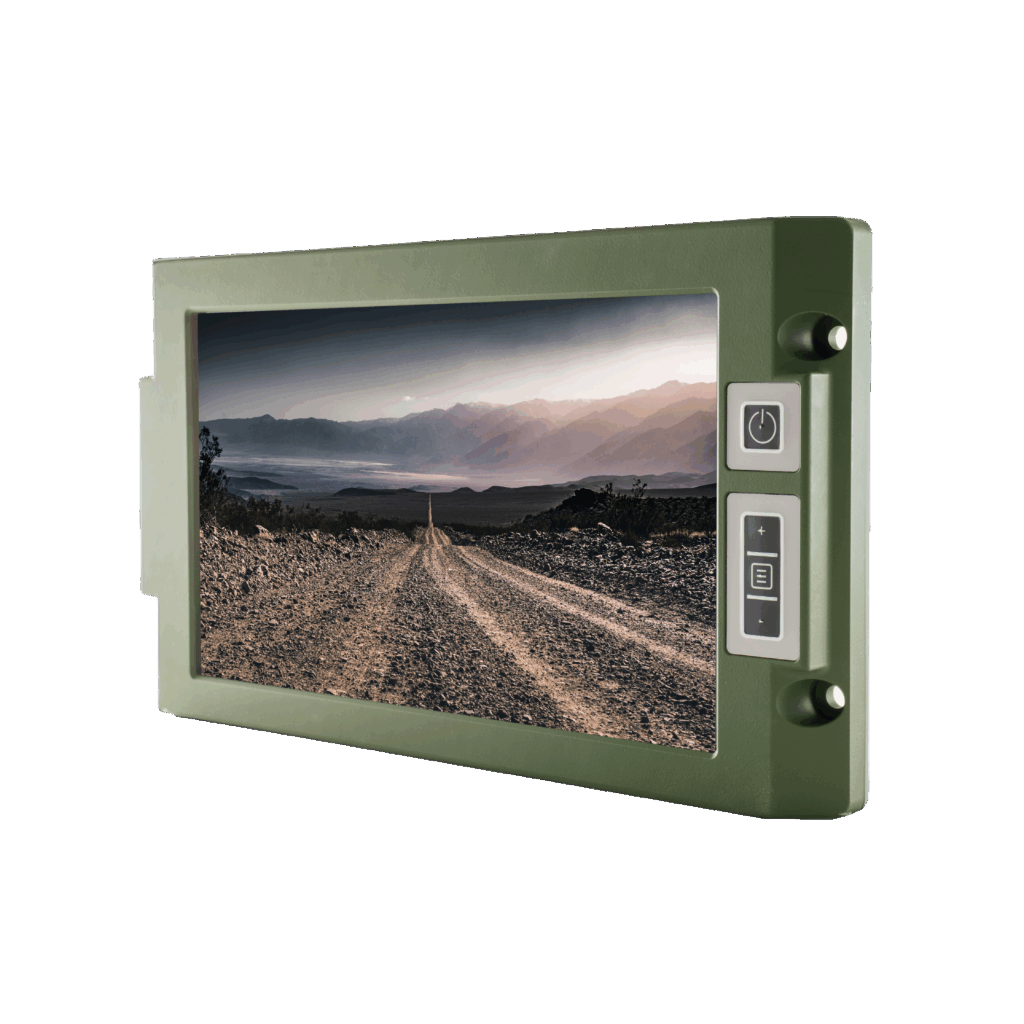

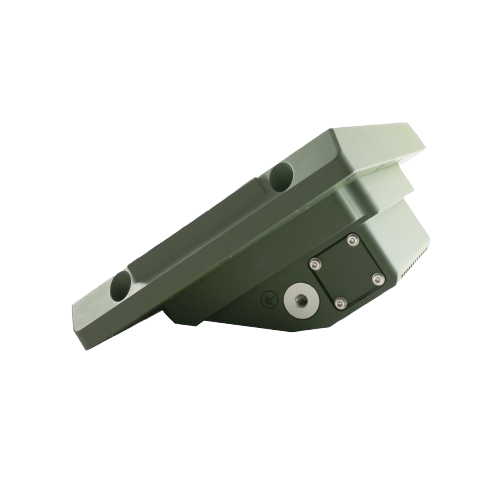

CFD1079
Overview
These rugged displays come in sizes from 11.6″ to 15.6″ with Full HD resolution and optional high-brightness NVIS backlight. All models share the same layout, electronics, and interfaces, making them easy to scale and integrate. Built to military and defense standards, they offer reliable performance even in tough environments.
Specifications
Display
- Panel: Color TFT-LCD
- Display size: 259,0 mm (10,2”)
- Active area (HxV): 225.792 x 127.008 mm
- Aspect ratio: 16:9
- Resolution (HxV): 1920 x 1080 Pixel
- Number of colors: 16.7 Mio
- Pixel pitch (HxV): 0.1176 x 0.1176 mm
- Contrast ratio: typ. 1000:1
- Brightness: typ. ≥ 800 cd/m2
- Viewing angle (HxV): typ. ± 85°
Video Signal
- Signal Input: HD-SDI up to 3G
- Video Standards: 720p60, 1080p25, 1080p30, 1080p50, 1080p60
Power Supply
- Supply voltage: 16…32 VDC
- Power consumption: max. 20W @ 28VDC

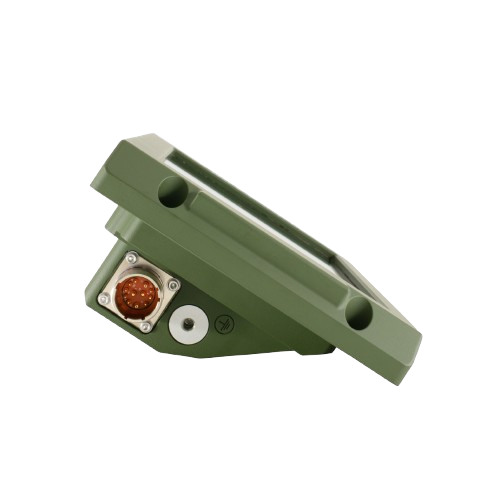

Connectors
- Connector X1: Combined Input
- Type: D38999/20FE02PN
- Video-Input: Coax contact 75Ω
- Power-Input: Pin (Male)
- CAN-Input Pin (Male)
Mounting
- Panelmount: 4x M6 frontside
Housing
- Material: Aluminium Alloy
- Powder coated
- RAL 6031
- Width: 298 mm
- Heigth: 165 mm
- Depth w/o Connector: 72 mm
- Weight: approx. < 3 kg
Controls and Communication
- Keys: Frontpanel
- Communication: CAN-Bus
Environmental
- Protection. IP66 integrated /connected
- Operating temperature: -46°C to +71°C
- Humidity: 8% … 100%
- Shock: 6g acc. to MIL-STD 810G method 516.6 Proc: I, II
- Vibration: acc. to MIL-STD-810G method 514.6 Cat. 20; 10 Hz to 500 Hz
- EMC: acc. to MIL-STD 461 F (G)
