IPCE-2HE-x
Designed with the real world in mind.

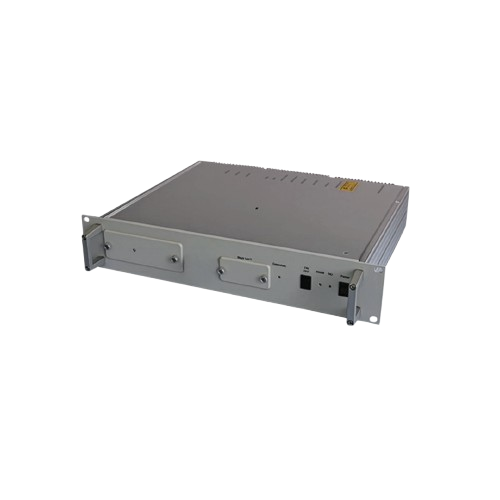

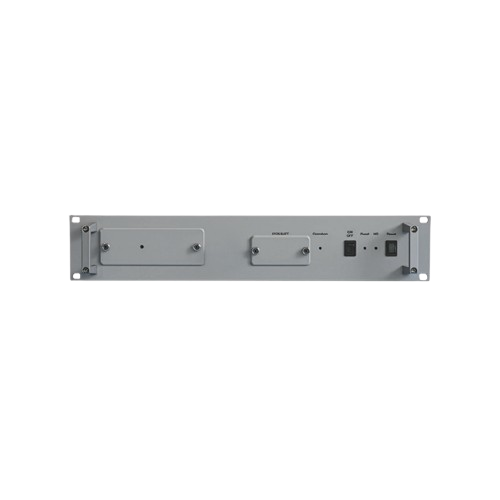

19″-Industrial-Rugged-PC 2HE
Features
- 19“ rack computer
- 2HE
- Power input: 90...264 VAC
- Wide range of hardware options
IPCE-2HE-x
Overview
These rugged displays come in sizes from 11.6″ to 15.6″ with Full HD resolution and optional high-brightness NVIS backlight. All models share the same layout, electronics, and interfaces, making them easy to scale and integrate. Built to military and defense standards, they offer reliable performance even in tough environments.
Specifications
Components
- Motherboard: mITX, K3833-Q
- CPU: Intel 12th GenCore i7-12700T; 1,4GHz max. 4,7GHz
- RAM: 32 GB, DDR5 4800 UDIMM
- Graphic card: NVDIA T1000E Industrial; PCIe x 16, 8GB
- LAN: 10/100/1000 RJ45 Intel Controller
- PCI Slot: PCIe 3.0 x 16
- OS Support: Linux RedHad Enterprise 8.x
- SSD: 1 x SSD 4TB Samsung 870QVO
- SSD change cage: 1 x
- Power supply: 500W, MIL-STD 810F comliant, 1HE
- Mounting: ELMA Telescope rails 65-003-05
Computer
- Chipset: Q670E, Socket LGA 1700
- Graphics intern: UHD, depends on CPU
- Graphics out: 2 x Display Port DP, 4 x DP on board
- I/O: 1 x PCIe internal, 2 x SATA III, 1 x SATA600 M.2 NVMESSD
Computer
- Chipset: Q670E, Socket LGA 1700
- Graphics intern: UHD, depends on CPU
- Graphics out: 2 x Display Port DP, 4 x DP on board
- I/O: 1 x PCIe internal, 2 x SATA III, 1 x SATA600 M.2 NVMESSD
Power Supply
Supply voltage: 90…264 VAC via 3pin ICE-Socket
ON/OFF: 1x Switch
Connector
- 2x USB 2.0 rearside
- 4x USB 3.2 rearside
- 1x USB 3.2 frontside
- 2x LAN (1000 Mbps) rearside
- 1x COM RS232/422/485 rearside
Mounting
- Telescopic rails
Housing
- Housing: Front RAL 7035
- Surtec 650
- Width: 465 mm
- Height: 88,1 mm
- Depth: 575,2 mm
- Weight: approx. 7,5Kg w/o rails
Software
- Operating systems: Linux RedHat Enterprise 8.x (not to deliver)
Controls and Communication
- LED indicator operation
- LED indicator Power
- LED indicator Temperature
- Reset Button
- ON/Off Switch
- Power Switch
Environmental
- Operating Temperature: 0°C … +40 °C
- Storage Temperature: -32 … +71 °C
- IP protection class: IP50
- Cooling: passive via heat pipes
- MTBF: 40.000 hr, limited by the graphics card
