Multi-Sensor-Camera 007
Designed with the real world in mind.
Multi-Sensor-Camera
Features
- High Resolution Cameras with different types of sensors
- Standard D38999 Interfaces
- Power Input: 16-32VDC
MSK007
Overview
These rugged displays come in sizes from 11.6″ to 15.6″ with Full HD resolution and optional high-brightness NVIS backlight. All models share the same layout, electronics, and interfaces, making them easy to scale and integrate. Built to military and defense standards, they offer reliable performance even in tough environments.
Specifications

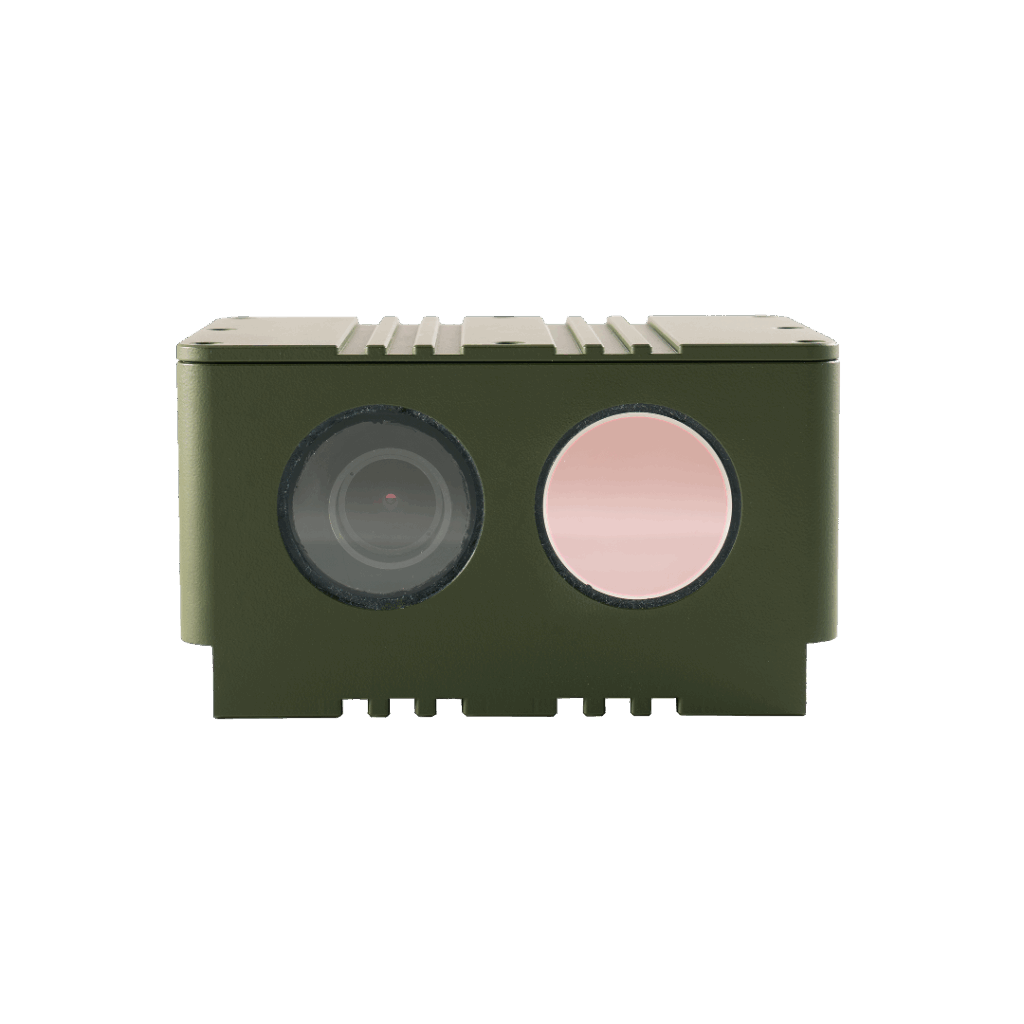

Day Camera
- Sensor: CMOS
- Resolution: 1920×1080
- Video-Output: HD-SDI
Night Camera
- Sensor: Uncooled Thermal Imager
- Resolution: 640×480 / 1024×768
- Frequency Band: 8-14μm
- Video-Output: CVBS / HD-SDI
Power Supply
- Supply voltage: 16…32 VDC
- Power consumption: max. 20W @ 28VDC
Mounting
- Mount: 4x M8

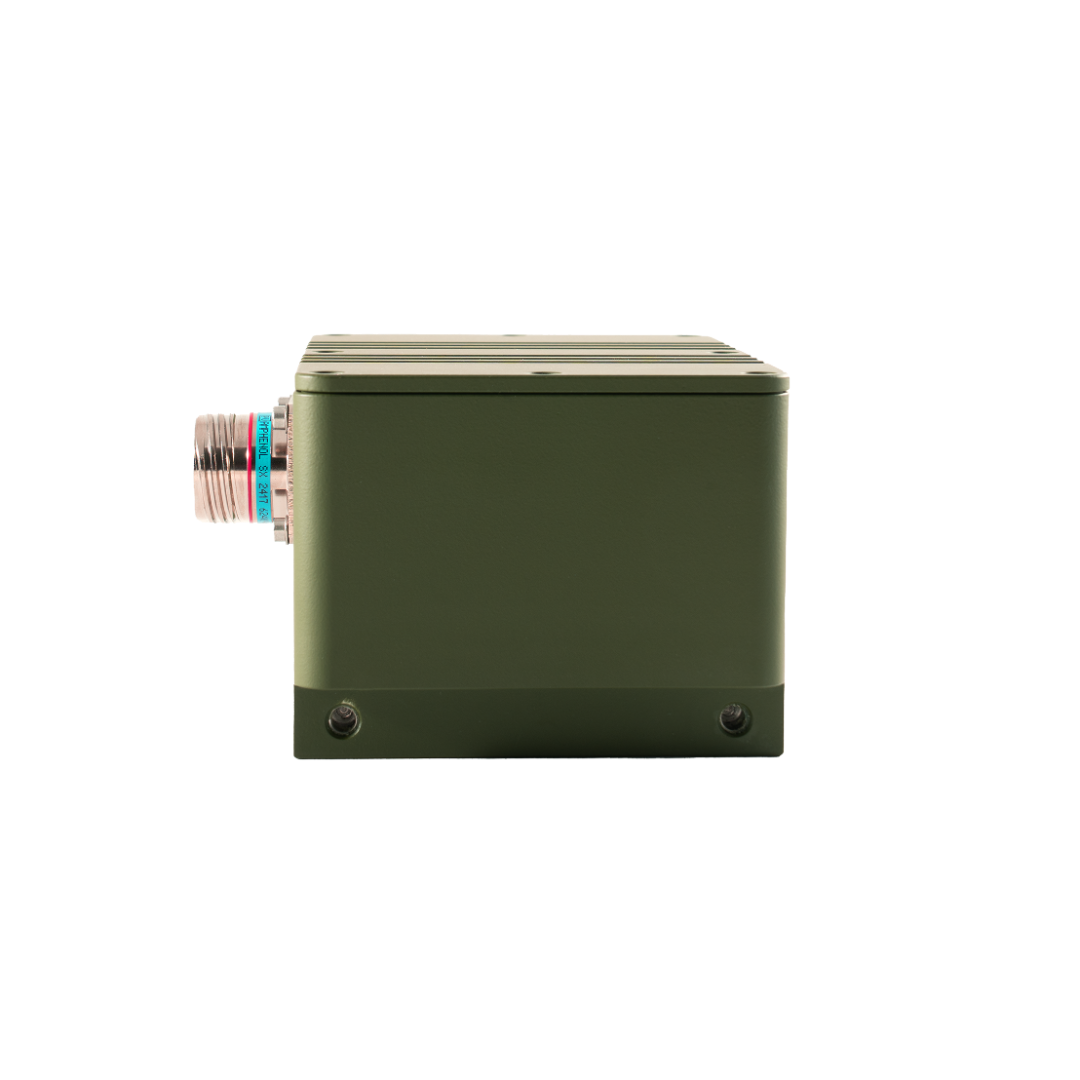

Housing
- Material: Aluminium Alloy
- Powder coated RAL 6031
- Width: 140 mm
- Heigth: 79 mm
- Depth w/o Connector: 100 mm
- Weight: approx. < 1.5 kg
Controls and Communication
- Communication: COM to VVB

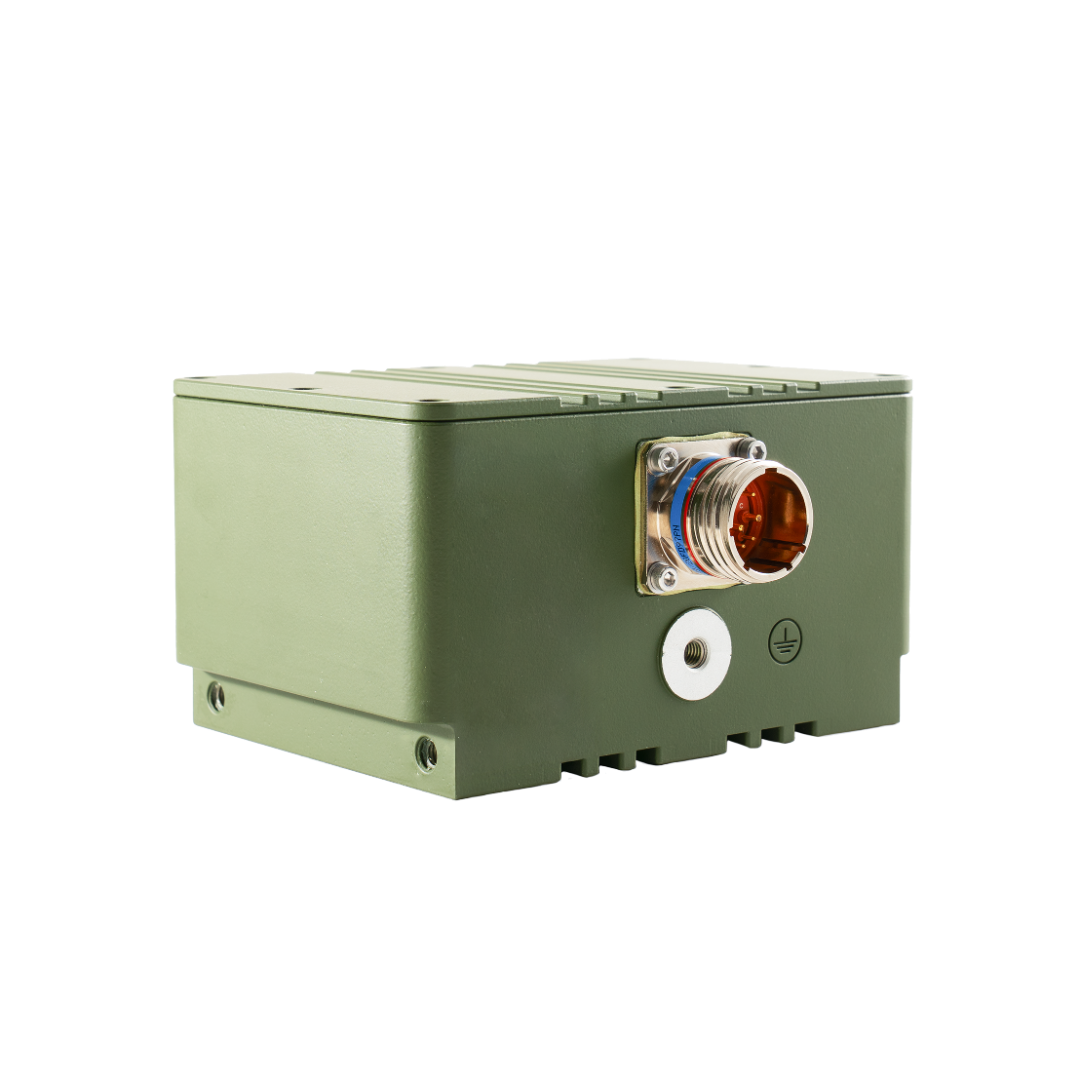

Connector

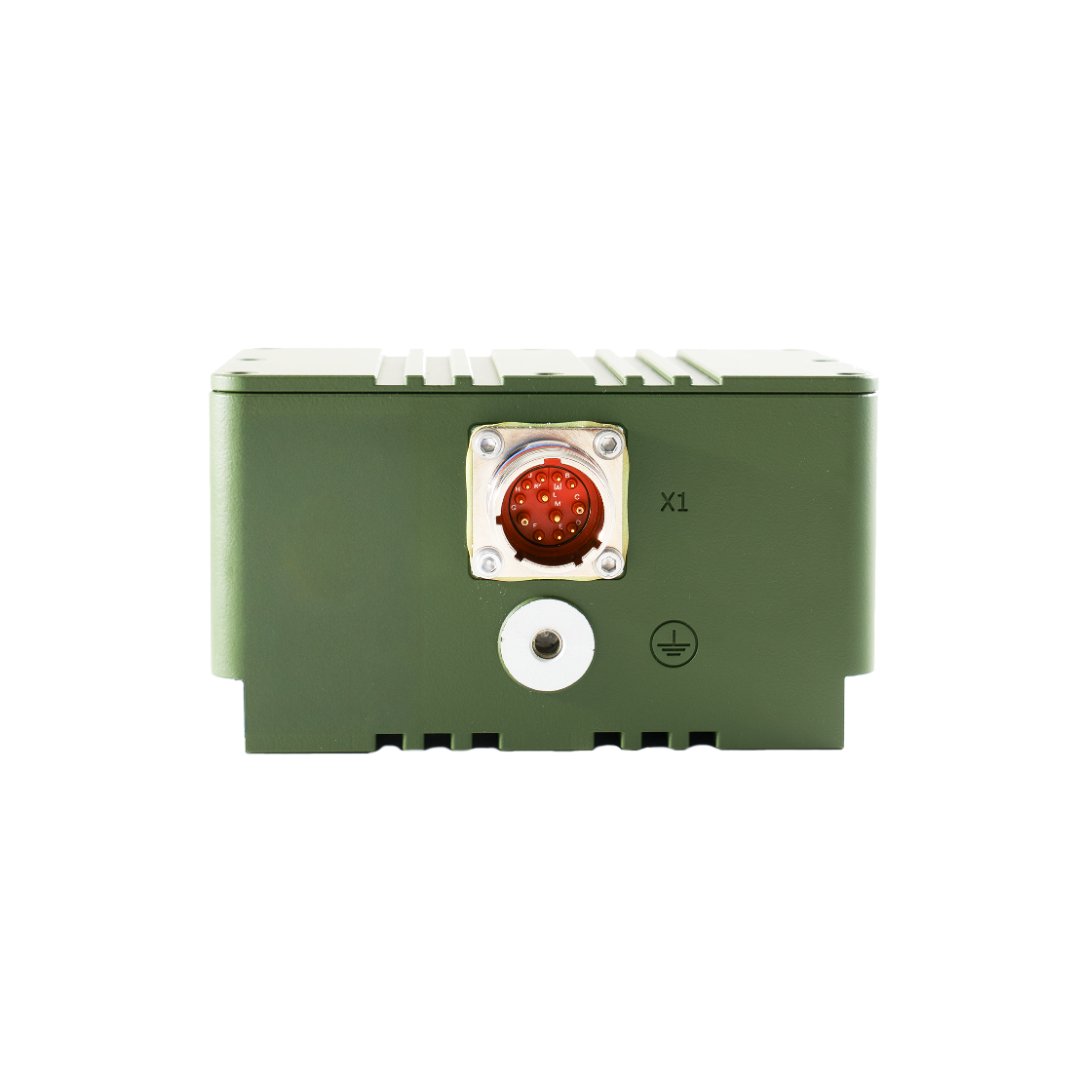

- Connector X1: Combined Input
- Type: D38999/20FD97
- Video-Input: Coax contact 75Ω Power
- Input: Pin (Male) COM-Input Pin (Male)
