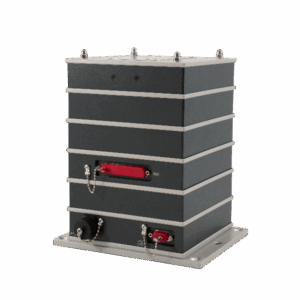

Industrial-PC based on a modular stack of PC/104 cards - IPCEZ104
Flexible build. Solid performance.
modular Industrial PC with PC/104 Stackable Design
Features
- Modular PC/104 stack design
- Intel Atom N450 1.66GHz CPU with 1 GB RAM
- Multiple interfaces: 2x RS232, USB, VGA, LAN (Gigabit)
- Wide input voltage range: 9–36 VDC
- Compact size: 150 × 150 × 35 mm per module
- Extended temperature range and optional IP65 protection
- Onboard 2 GB flash and VGA graphics
Overview
This Industrial PC is built on a modular PC/104 stack, allowing flexible configurations. It features an Intel Atom N450 processor with 1 GB of memory and built-in 2 GB flash storage. The system includes essential interfaces like RS232, USB, VGA, and Gigabit LAN. Each module is compact, measuring only 150 × 150 × 35 mm. Designed for harsh environments, it supports a wide input voltage range (9–36 VDC), optional IP65 protection, and extended temperature operation. Ideal for industrial and embedded applications.
Specifications
CPU-Module
- Size: PC/104 form factor
- CPU: Intel Atom N450 1.66GHz
- Memory: 1 GB
- I/O: 2x RS232
- 1x USB
- 1x VGA
- LAN: 10/100/1000 MBps
- Flash: 2 GB onboard
- Graphic: VGA onboard
Power Supply-Module
- Size: PC/104 form factor
- Input voltage: 9 … 36 VDC
- Status LED: green
- Fuse: M 4,0A
Fan-Module (option)
- Size: PC/104 form factor
Customer specific Modules
- Size: PC/104 form factor
Connectors
- USB: USB-A
- LAN: RJ45
- COM1/2: 9-pin DSUB (male)
- VGA: 15-pin HD-DSUB (female)
- Supply voltage: Hirschmann CA 3GS
Dimensions
Total height depends on number of modules
- Graphic: VGA onboard
- Height (1 module): 35 mm
- Width (1 module): 150 mm
- Depth (1 module): 150 mm
Environmental
- Working temp.: 0 … 60°C
- extended temperature range (option)
- Storage temp.: -40 … +85°C
- Humidity: 0% … 95% relative non-condensing
- IP protection class: IP 54
- IP 65 (option)
Accessories
Battery
Main V100 9-cell battery.
Power Adapter
AC adapter with power cord.
Battery Charger
Dual bay battery charger for the main battery.
Vehicle Adapter
12-32VDC vehicle adapter and charger.
Vehicle Mount
PMT vehicle mount.
Vehicle Mount
PMT vehicle dock with port-replication.
Vehicle Dock
PMT vehicle dock with port-replication and WLAN/WWAN Pass-Thru.
Hard Disk Drive
320GB HDD with canister.
Solid State Drive
160GB SSD with canister.
MIL-STD-461F Power Supply
Power supply for MIL-STD-461F.
Office Dock
V-Series office dock.
Hand Strap
X-Strap for V-Series.
Digitizer
Spare passive digitizer pen.
Stylus
Spare stylus with tether cable.
Computer Bag
Deluxe soft carry bag.
