Rugged Multi-Crosspointswitch
Built Tough. Switching Smarter.
a rugged Multi Crosspoint Switch for Video and USB
Features
- Video crosspointswitch: 8x4 HD-SDI
- Multiviewscaler: 4x1 picture by picture
- USB distribution: 8x4 USB crosspoint; Extender up to 5m
- Power distribution: 12VDC Out
- 4x8 crosspoint for remote On/Off Signal
- IP65 protection & MIL-STD certified
RMCS01
Overview

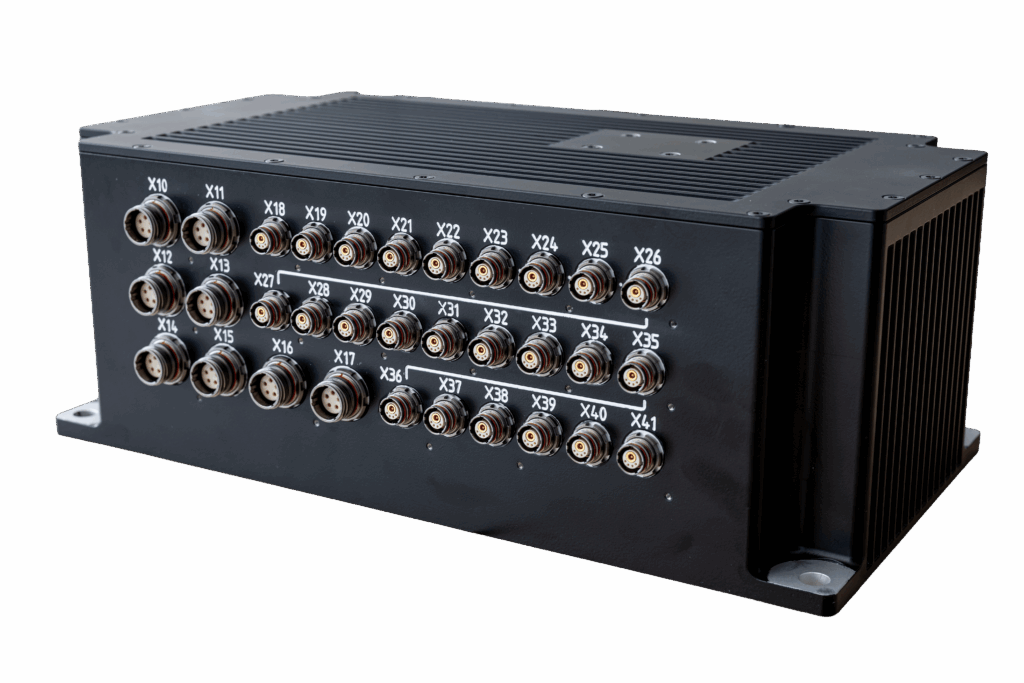

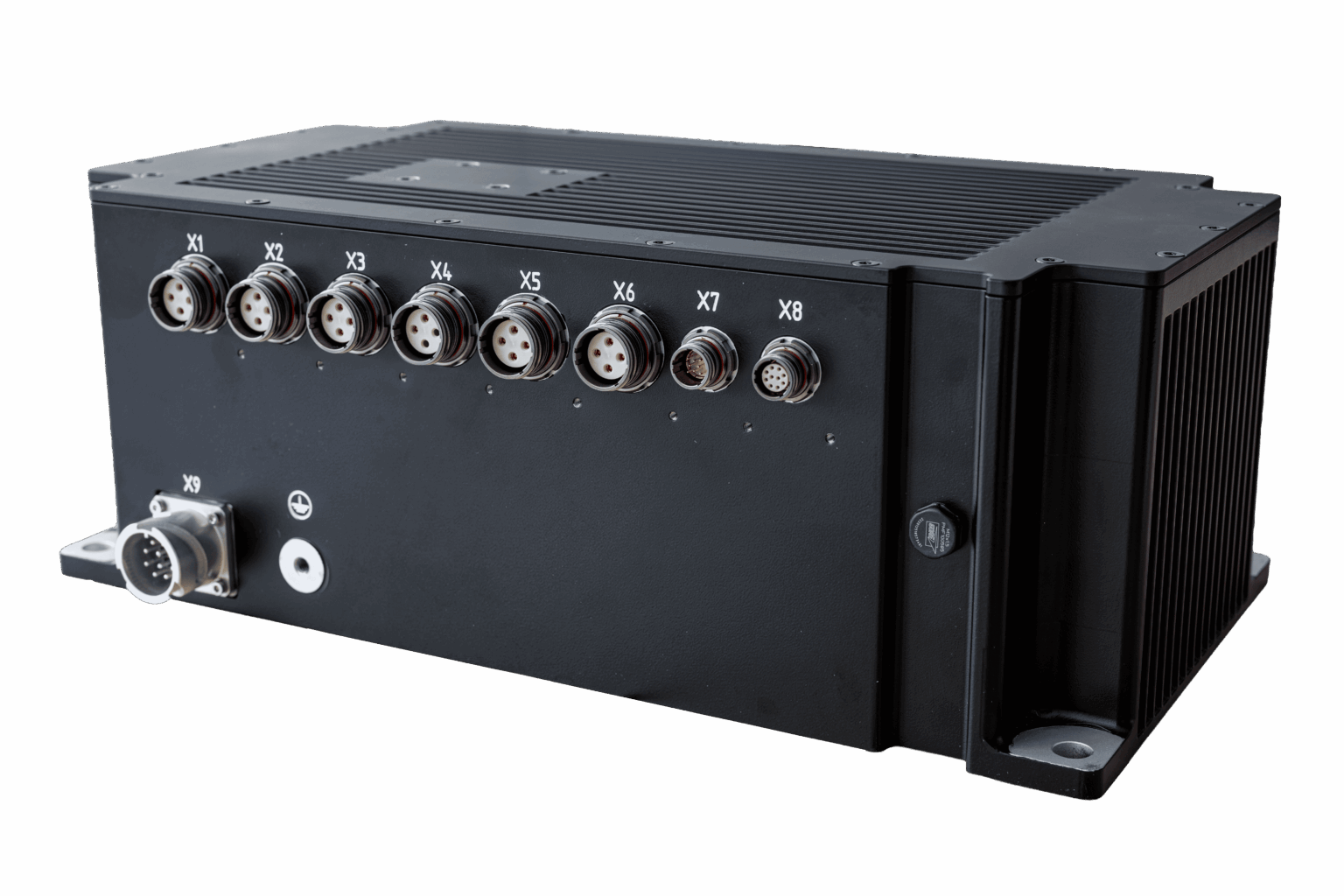

RMCS01 is a multi functional crosspoint switch for video and USB. It supports 8x HD-SDI video inputs and 4x HD-SDI video outputs.
With the intergrated multiviewscaler it is possible to provide 4×1 picture by picture.
Also provided is 8×4 USB distribution up to 5 meters. The power input is 28 VDC and a 12 VDC output is built-in.
Specifications
Video Signal
- Signal Input: 8x HD-SDI
- Signal Output: 4x HD-SD
Power Supply
- Supply voltage: 28 VDC from vehicle
- Power consumption: max. 450W @28VDC
- Power output: 12 VDC
USB & PW_SW Signal
- USB-Input: 8x USB2.0 to RVCs
- USB-Output: 4xUSB2.0 to BAGs
- Integrated USB Redriver up to 5m
- 4x PW_SW Signal Inputs from BAGs & 8x PW_SW Outputs to RVCs
Systemcontrol & Communication
- Systemcontrol: via BAGs
- Communication: RS422
Connectors

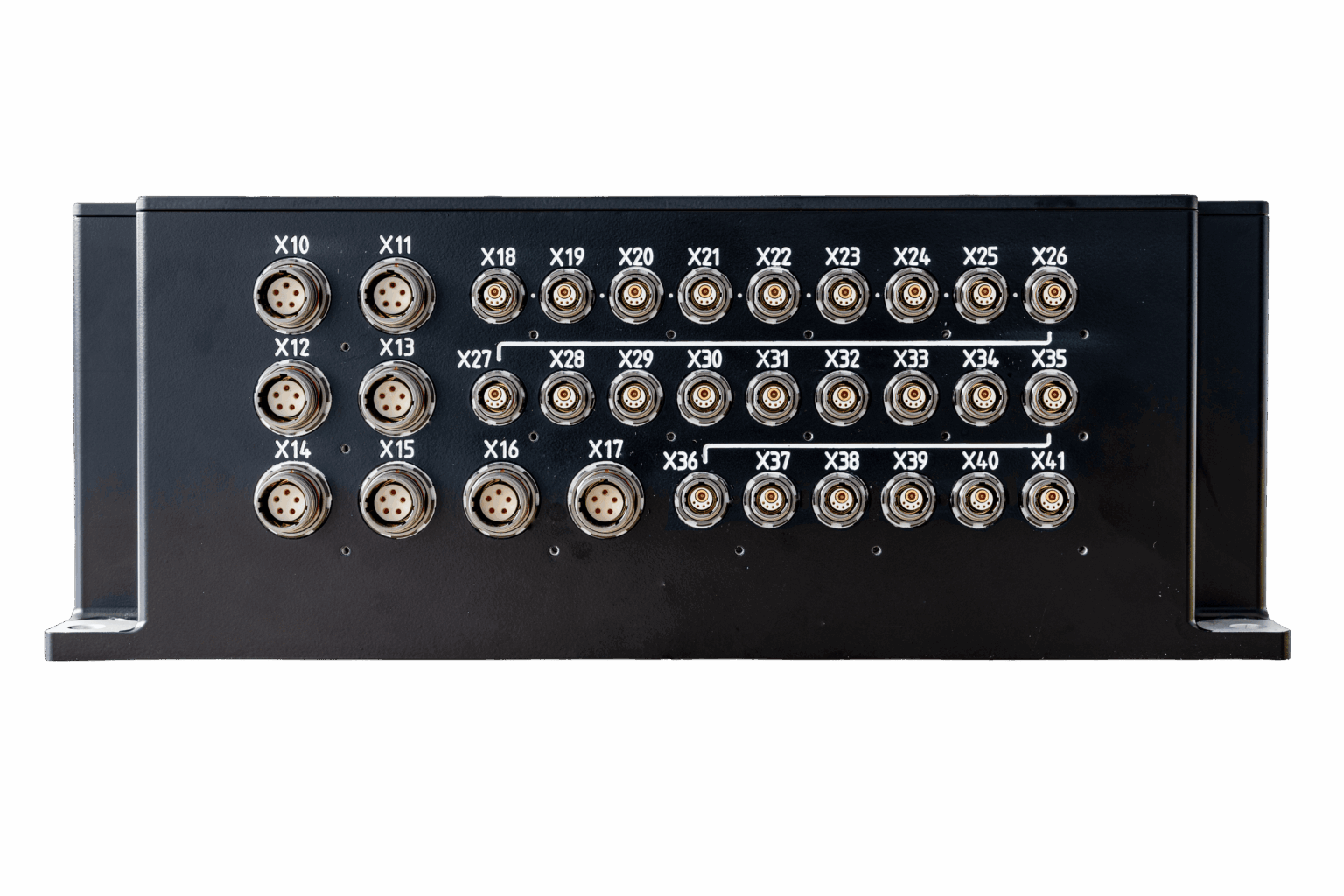

- 4x Combined Input: 2x HD-SDI & 2x USB & 2x Power SW
- 4x Connector: D38999/20FD97SN
- 4x Combined Output: HD-SDI, USB, RS422
- Power SW & 12VDC-Out
- 4x Connector: D38999/20FD97SA

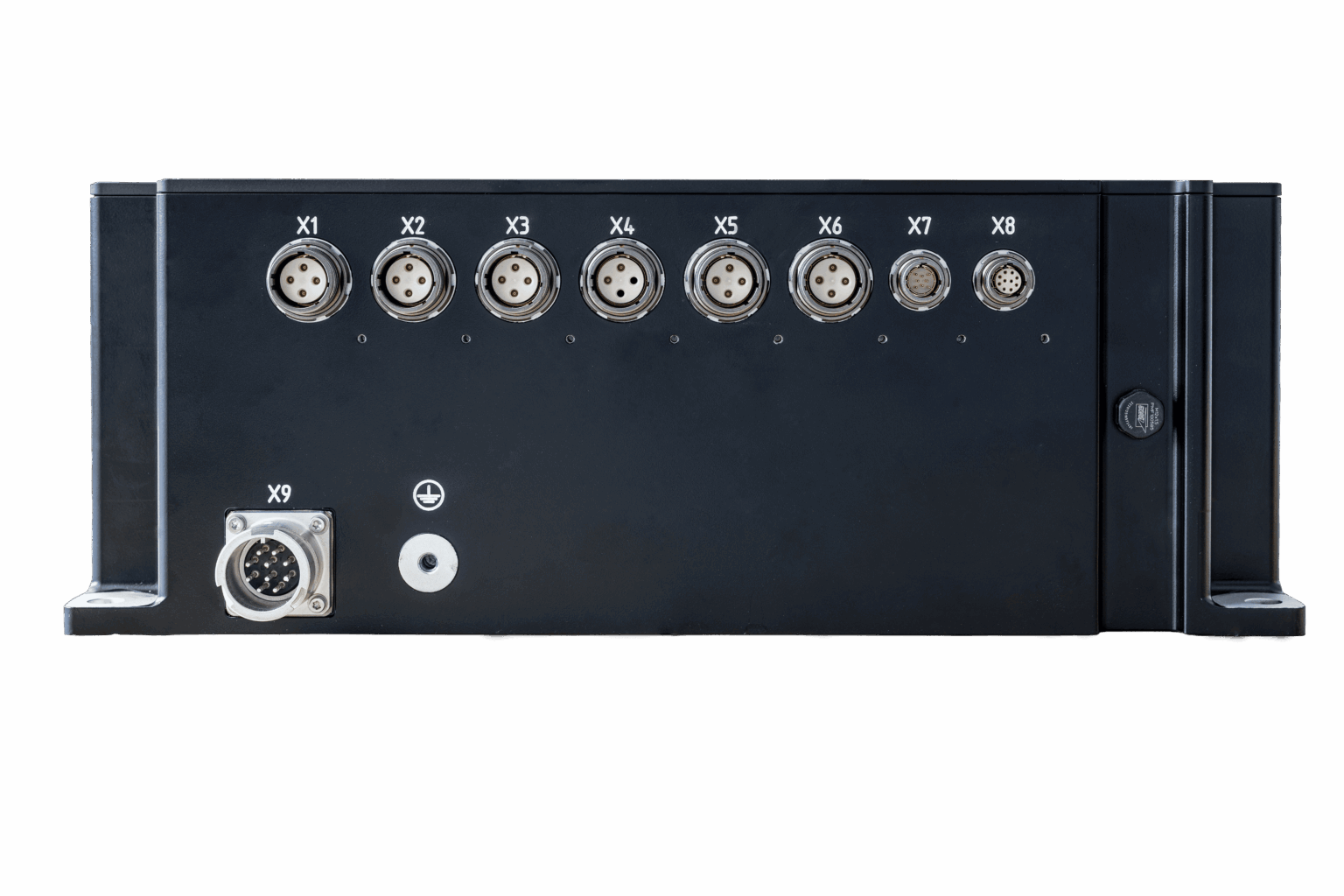

- Power Input: 28VDC from vehicle
- Connector: D38999/20FB5PN
- Grounding: M6
Mounting

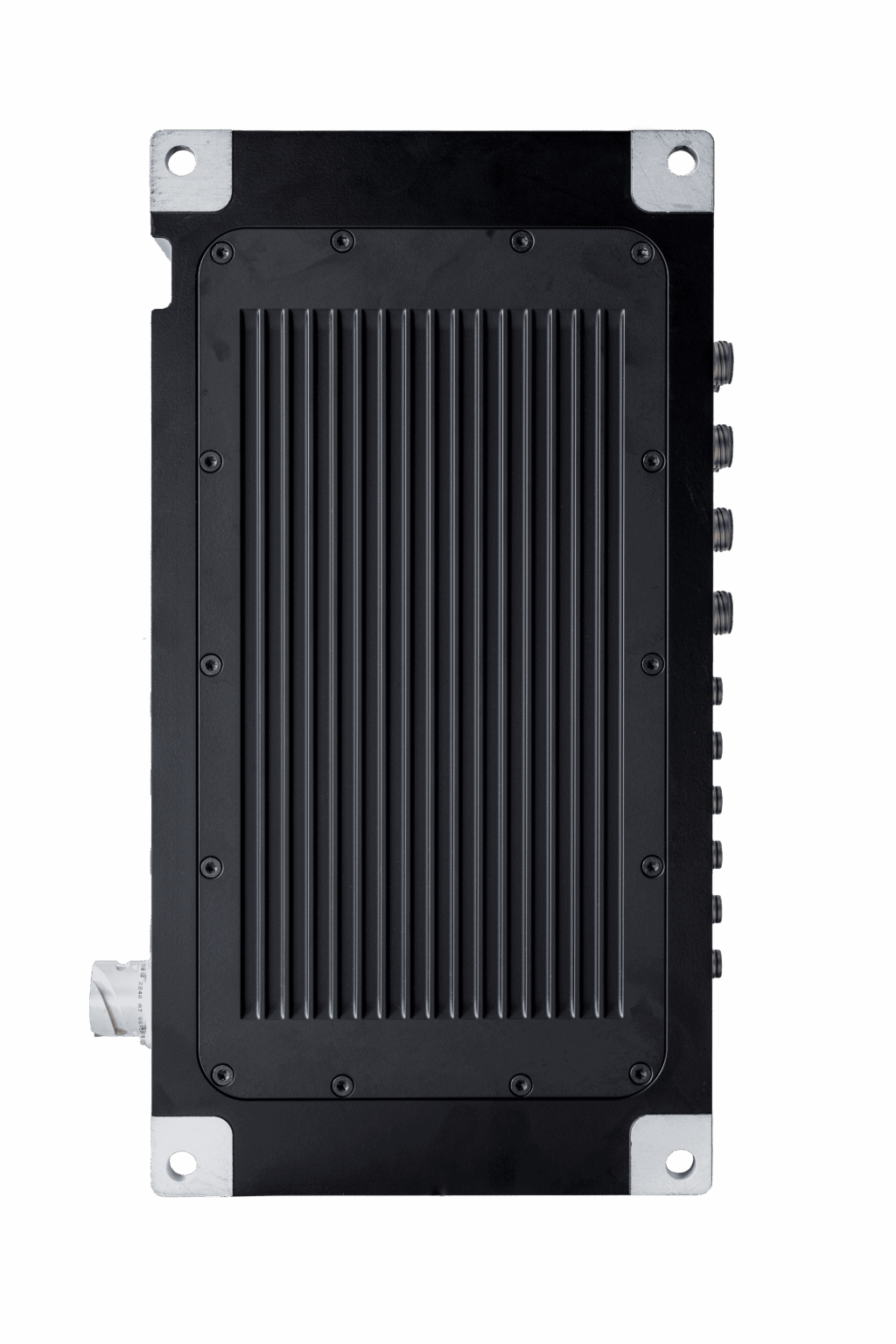

Mounting: 4 x M10 bottomside

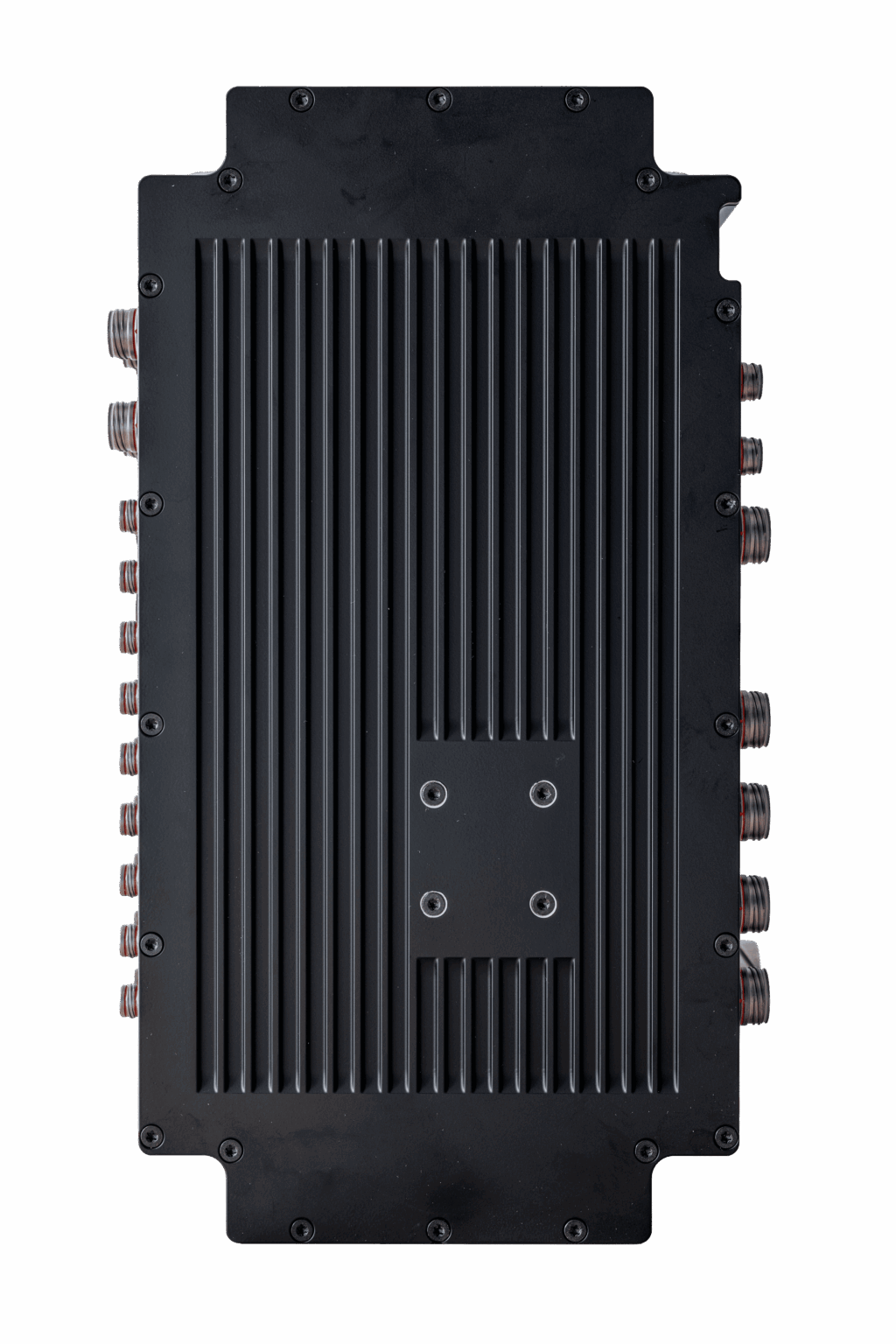

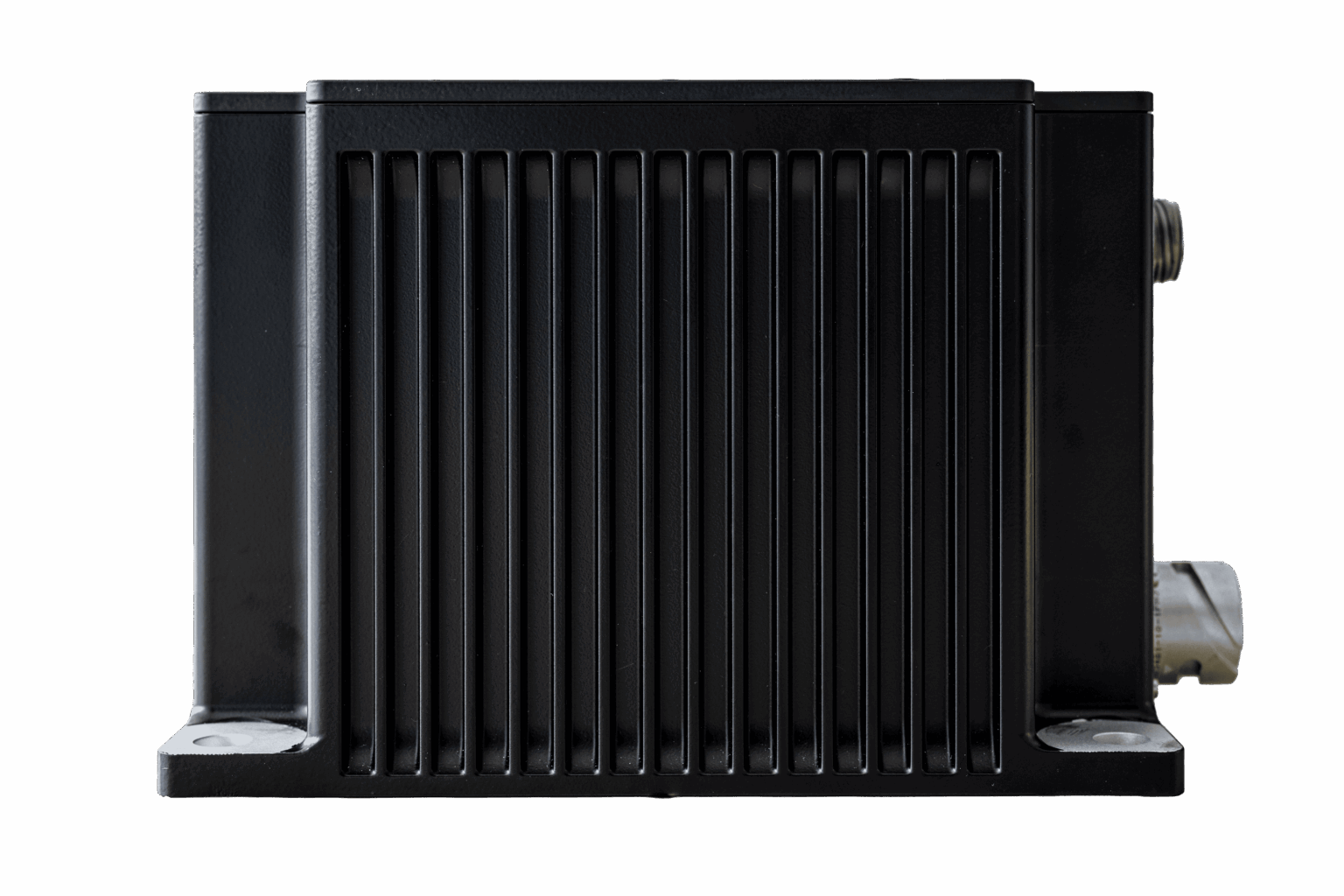

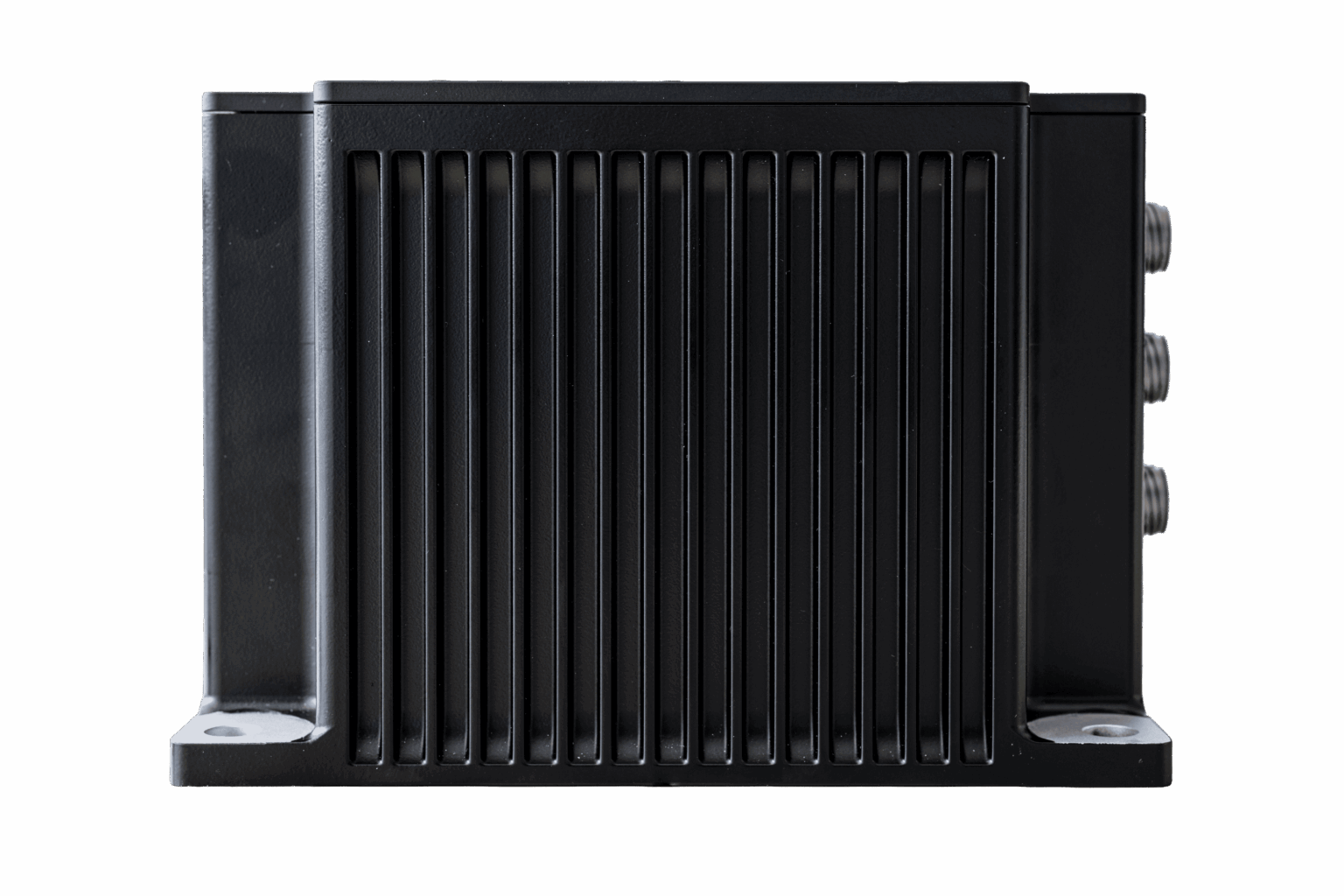

Housing
- Material: Alloy
- Surface: Surtec650; Powder coated; RAL 6031
- Width: 390 mm
- Heigth: 149 mm
- Depth w/o connector: 262 mm
- Weight: 20,0 kg
Environment
- Protection: IP65
- Operating temp.: -32°C to +63°C
- Humidity: 8% … 100%
- Shock: acc. to MIL-STD 810G
- Vibration: acc. to MIL-STD-810G
- EMC: acc. to MIL-STD 461 F (G)
- Power: acc. to MIL-STD 1275 (w/o Load Dump)
