Rugged Power Supply 1kW
Tough outside. Pure power inside.
Rugged Power, Reliable Performance – Built for Extreme Conditions
Features
- Wide Input Range: Operates from 16 to 32 VDC (nominal 24/28 VDC)
- High Output Power: Dual 27 VDC outputs (±2 VDC), delivering up to 40 A total
- Rugged Construction: Durable AW 5063 T6 alloy housing with powder coating (RAL 9005)
- Advanced Cooling: Integrated IP65-protected cooling system with status and fail monitoring
- Environmental Resilience: Operates from -32°C to +63°C, compliant with STANAG 2895
- Shock & Vibration Proof: Tested to military standards (AECTP 400, MIL-STD 461/D)
- Smart Connectivity: CAN-based control interface and multiple MIL-grade connectors
RPS001
Overview
This robust power supply delivers two stabilized 27 VDC outputs with a combined maximum load of 40 A, ideal for demanding military and industrial environments. Engineered with a rugged IP65-rated housing and advanced cooling system, it ensures reliable performance from -32°C to +63°C. Featuring CAN interface, status monitoring, and MIL-STD compliance, it stands ready for operation in the harshest conditions.
Specifications
Power Supply
- Input:
- Supply voltage: 16..32 VDC
- Nominal: 24/28 VDC
- Output:
- Output voltages: 2x 27 VDC (± 2 VDC)
- Nominal current: 25 A + 15 A (total maximum 40A)
Dimensions
- Width: 163 mm
- Height: 135 mm
- Depth: 250 mm (w/o connectors), 274 mm (with connectors)
Weight
- Total: < 8 kg
Housing
- Material: Alloy AW 5063 T6
- Surface LN 9368-4301.1 T6; DIN 50965-Fe//Sn12//T1
- Powder coating RAL 9005

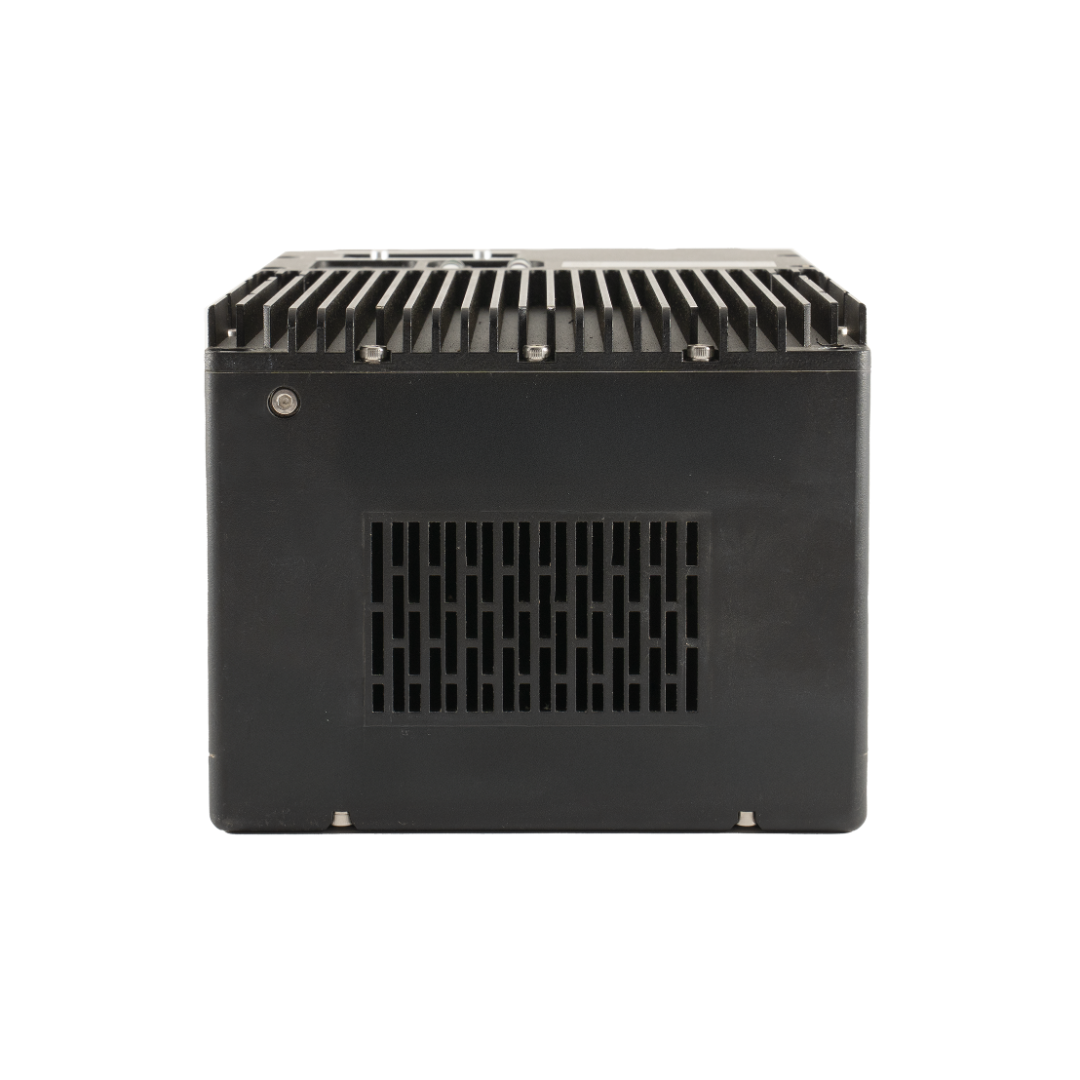

Cooling
Cooling: special IP65 protected cooling
system with Status and Fail monitoring
Controls/Software

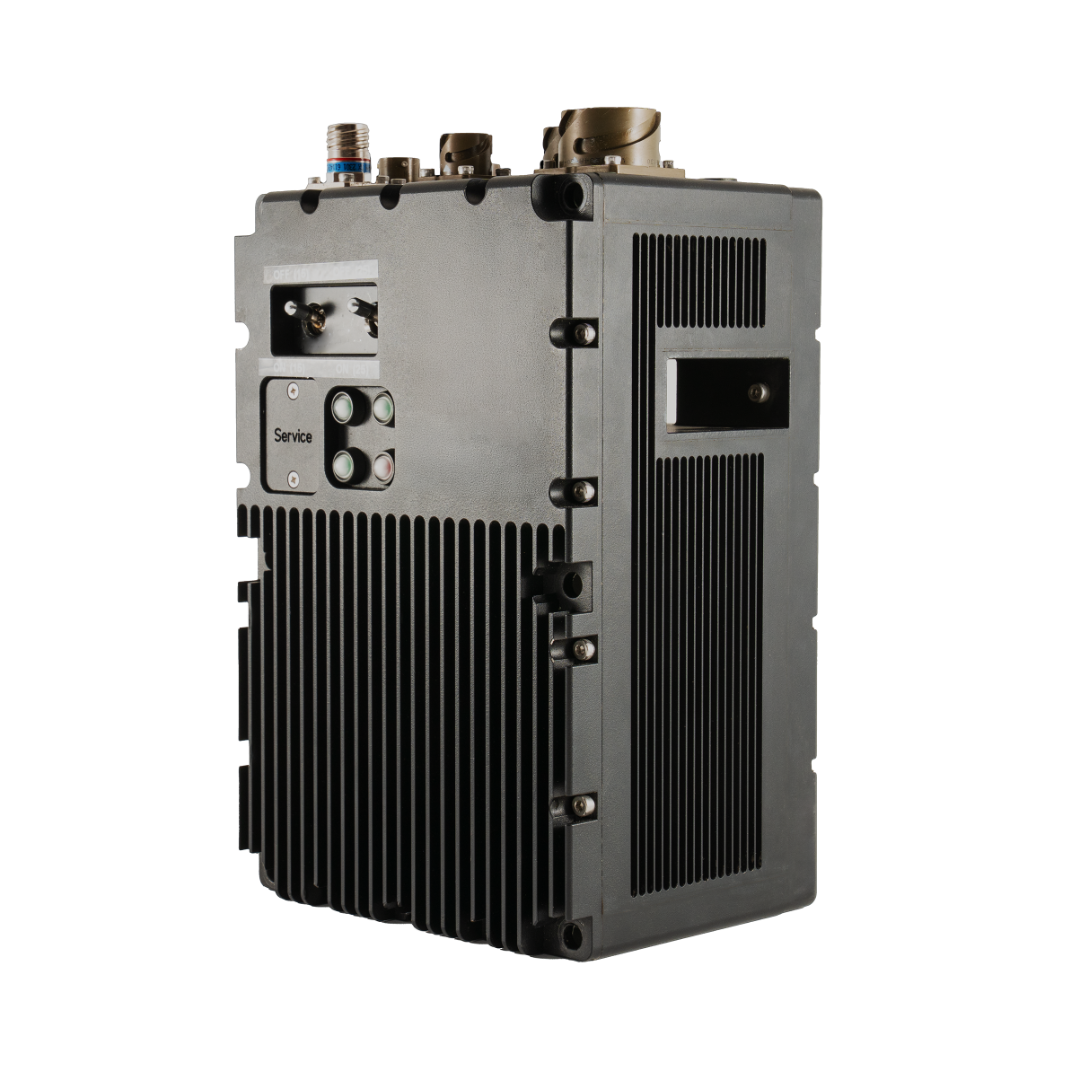

- Topside: Status LEDs
- Control-Interface: CAN

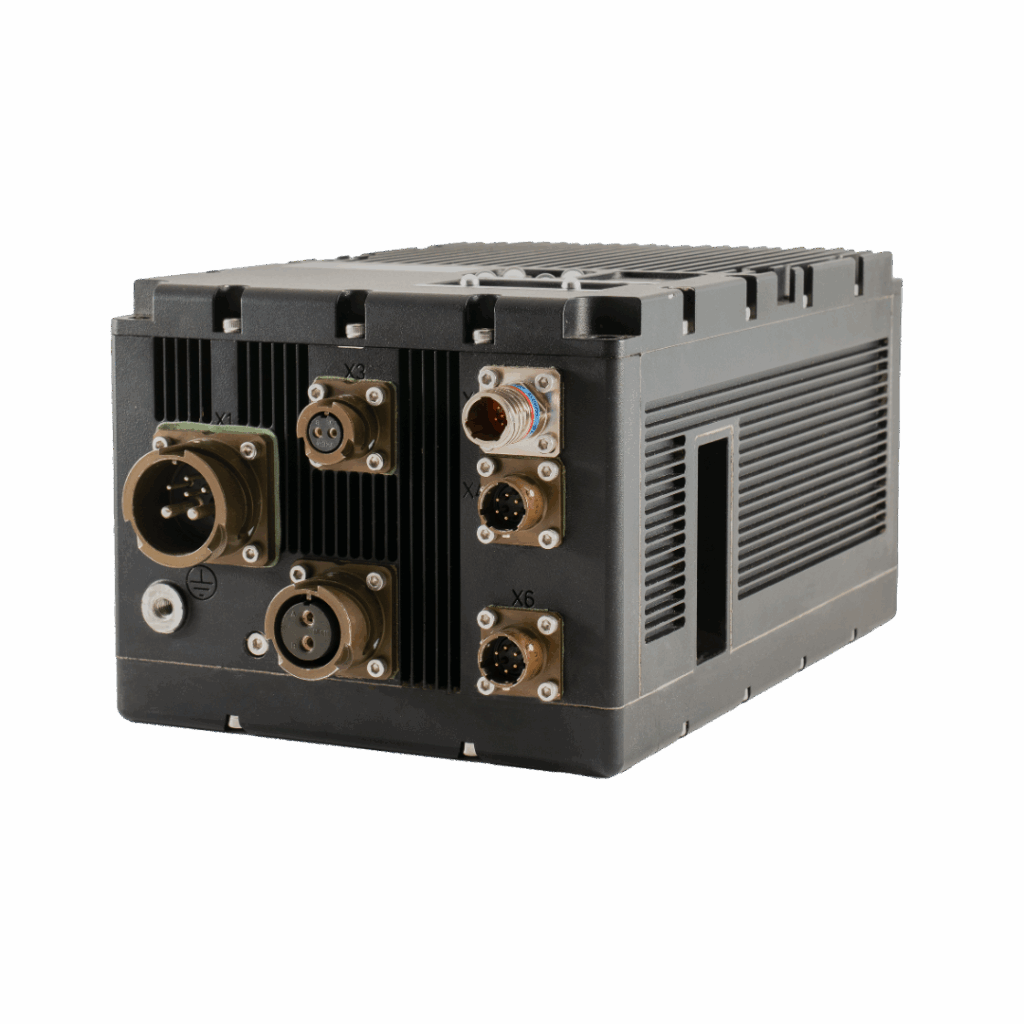

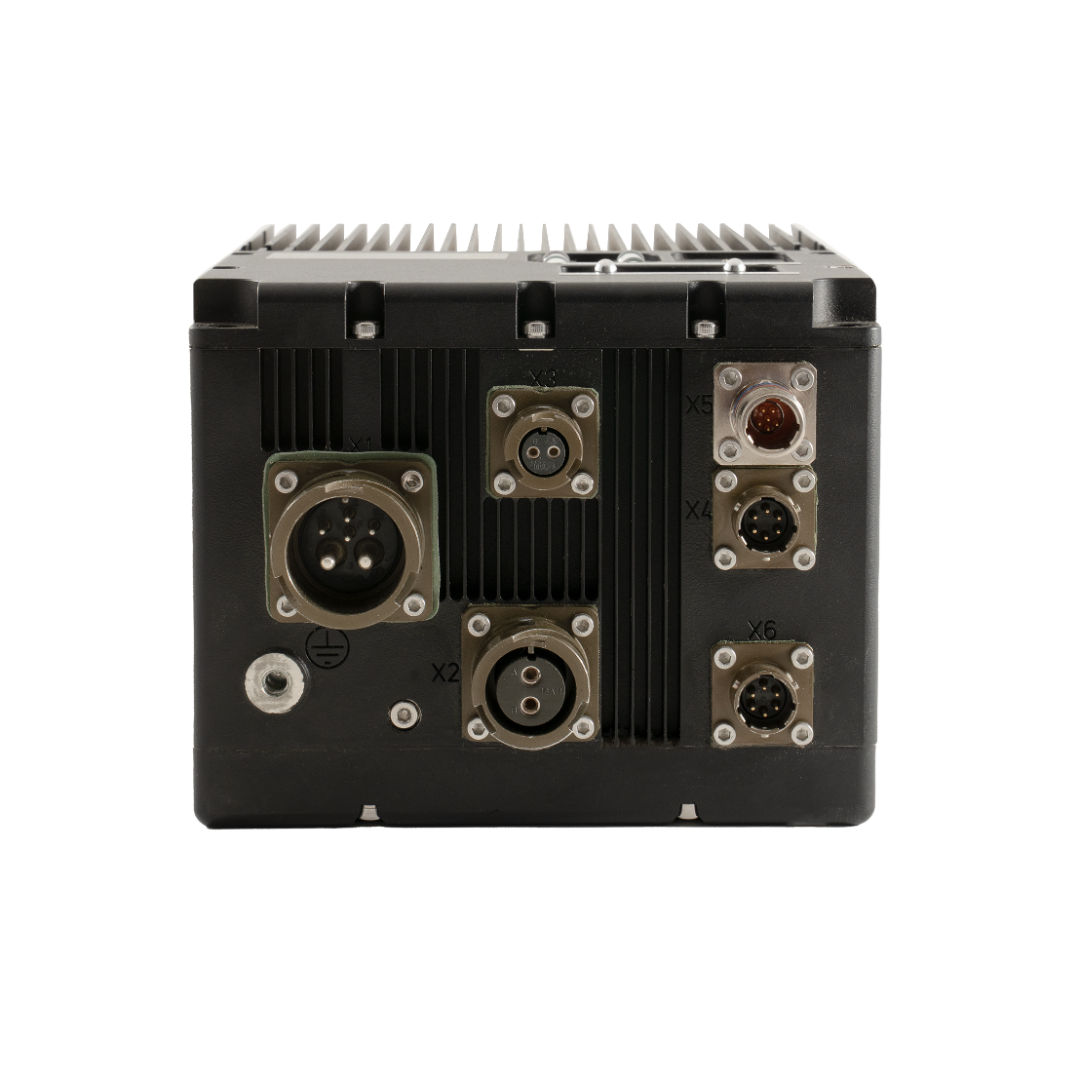

Connectors
- VG95234 20-8 PN
- VG95234-16A11 SN
- VG95234-10SL-4 SN
- VG95328 10-6 PN
- VG95328 8-4 PN
- Ground connection socket M6x12mm
Environmental
- Temperature: STANAG 2895:1990; Zone A1, A2, A3, B1, B2, B3, C0, C1
- Op. Temperature: -32°C … +63 °C
- Storage Temp.: STANAG 2895:1990; Table 14 – Cycle C1
- IP protection class: IP65
- Shock: 1x 500g / 0.5 ; 10x 10g / 6ms (vertical axis)
- Vibration: AECTP 400, Annex B 401 (Light Vehicle – Material on Sponson or installed in Hull)
- EMC:MIL-STD 461/D CE 102-1
MIL-STD 461/C CE 3
MIL-STD 461/D, RE-102
MIL-STD 461/D, RS-103
VG 95370-16/26, SA06-S
VG 95370-13, SF01S
