LB-RTC 1015

Features

Intel® Oak Trail™ platform, Atom Z670 1.5GHz with SM35 chipset

Seamless communication functions, 3.5G, GPS, Tracker (optional)

Multiple dockings-table top and vehicle mount

Slim, sealed, stronger and lighter style design

Outdoor viewable application

Dual cameras support

RFID (NFC) module support

More than 12hrs operating time with Dual Batteries in 25°C environment

Wide coverage accessories to meet different deployment needs

Certified to MIL-STD-810G and IP54 NEMA 13

Microsoft® WS7E and WS7P support

Overview

Lucius & Baer delivers the best functionality and ergonomics for user application. Base on MIL-810G military standard reliability (high temperature, low temperature, shock, vibration, drop), the Semi-rugged Tablet PCs pass from 0 to 40 degree C, highly transit shock and vibration, 4t drop free to concrete surface, and also IP54 fully sealed to against water & dust damage. With sunlight readable touch screen coating technology, fanless thermal conduction design, and expansion flexibility for barcode scanner, MSR , GPS, Tracker, RFID or wireless combo communication functions, our LB-RTC 1015 Rugged Tablet PC product can meet most of harsh outdoor environment application and will be the best tool of your job assistance.
LB-RTC is the best choice for the industry professionals

Specifications
CPU

Intel® Oak Trail™ Atom 1.5GHz (Z670)

RAM

Max. 2GB DDRII 800 Memory Down

Storage

32GB 1.8-inch Half-Slim SSD Installed

Display

10.1-inch LED Backlight Screen with 5-wire Resistive Touch

Display Resolution

1366 (W) x 768 (H) WXGA

Outdoor Viewable

Transflective plus type

Audio

2 x High Quality Speakers

Communication

Wi-Fi IEEE 802.11 b/g/n and Bluetooth 2.1

RFID

ISO/IEC 1443A, 1443B, 15693
Mifare 1K/4K, Ultralight
NFC-IP1 Protocol

Webcam

1.3 Mega-pixel, audio input (Front Bezel)
2 Mega-pixel, LED auxiliary light (Rear Bezel)

TPM

1 x Compatible with TPM 1.2

Light-Sensor

1

USB 2.0 Type A

2

Microphone Jack

1

Headphone Jack

1

Docking Connector

1

DC-Jack

1

Power Button

1

Lock Button

1

Wi-Fi Button

1

Navigation Button

4+ Way Navigation button with integrated Enter button

Program Function Button

5

Trigger Button

2 x Barcode buttons (Programmable)

LED Indicator

Power
Storage
Wi-Fi

Dimension

277.8 (W) x 206 (H) x 26.5 (D) mm

Weight

1.2kg (2.65lb)

Certifications

CE, FCC, UL, VCCI, CCC; CE/FCC SAR

Operation System

WES 7-WS7E, WES-WS7P

Water/Dust Resistance

IP54 equivalent

Drop

4-ft drop (MIL-STD-810G Method 516.6 Procedure IV)

Mechanical Shock

Operating : 20g, 11ms, Terminal sawtooth.
Non-operating : 40g, 11ms, Terminal sawtooth

Operation Temperature

0°C to +40°C (32°F to 104°F)

Storage Temperature

-20°C to +60°C (-4°F to 140°F)

Humidity

5-90% without condensation

Battery

Internal Smart Lithium Polymer Battery, 3800mAh

Power Adapter

AC 100V ~ 240V, 50~60Hz input; 19VDC@3.42A, 65W

Accessoires
MSR
Barcode Scanner
GPS : GP01
GPS/GPRS Tracker : GT01
DeskTop Docking
DT01 (RTC-1015-KE Model)
DeskTop Docking
DT02 (RTC-1015-TE Model)
DeskTop Docking
DT02 (RTC-1015-ME Model)
External Battery Charger
EB100
External Battery
4200mAh (Front)
External Battery
4200mAh (Back)
Vehicle Docking Kits
VD100 (RTC-1015-KE Modell) (Front)
Vehicle Docking Kits
VD100 (RTC-1015-KE Modell) (Back)
Vehicle Docking Kits
VD200 (RTC-1015-TE Modell) (Front)
Vehicle Docking Kits
VD200 (RTC-1015-TE Modell) (Back)
Vehicle Docking Kits
VD200 (RTC-1015-ME Model) (Front)
Vehicle Docking Kits
VD200 (RTC-1015-ME Model) (Back)
Carrying Case
Carrying Case
Hand Strap
Hand Strap
Shoulder Belt
Stylus

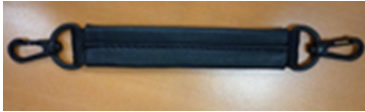

Handle Secures
